Wire Harness Assembly

XS12K3P Circular Connector Plug Wire Harness

Custom Wire Harness with Molex 2510 3pin to waterproof XS-type circular connector for industrial application.
  • Brand:

    KEHAN
  • item no.:

    KH-1-047
  • Payment:

    T/T, Paypal, Western Union
  • product origin:

    Xiamen, China
  • Color:

    Customized
  • shipping port:

    XIAMEN
  • MOQ:

    100
  • Lead Time:

    1-2Weeks
inquiry now
Product Details

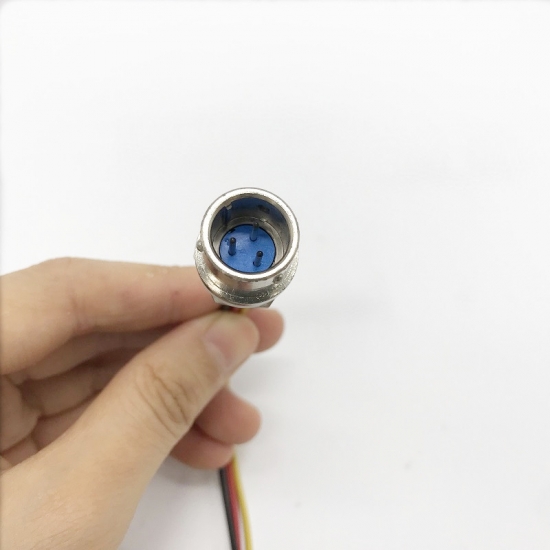

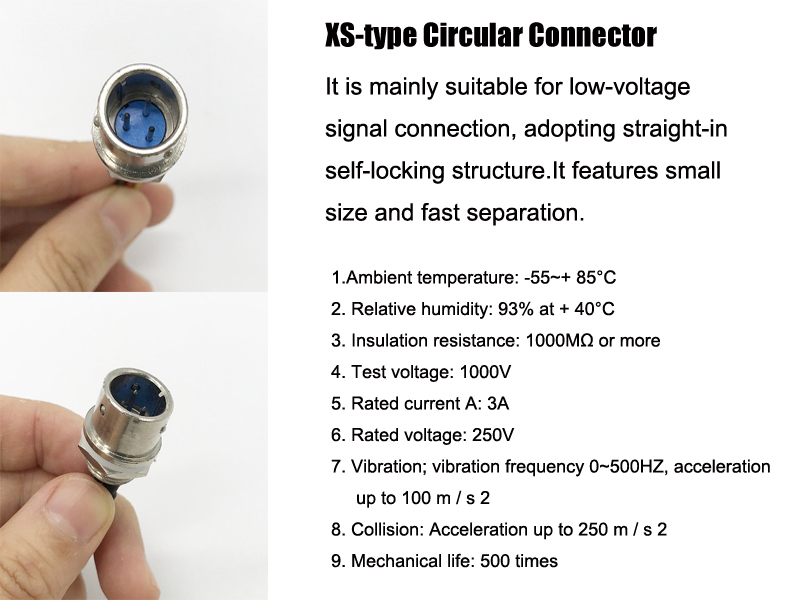

XS-type Circular Connector



                          Electrical Performance

1) Contact Resistance & Rated Current

Contact Specification (mm) Contact Resistance (mΩ)
 Rated Current (A)
Φ0.8 ≤8 3
Φ1 ≤5 5
Φ1.5 ≤3 10


2)Rated Voltage, Withstand Voltage and Insulation Resistance

Working Environment  Rated Voltage
Withstand Voltage
Insulation Resistance
Normal Temperature & Pressure  500 1500 ≥3000
Hot & Humid  500 750 ≥100
High Temperature  500 --- ≥500
Low Pressure Condition 4.39Kpa 250 350 ---

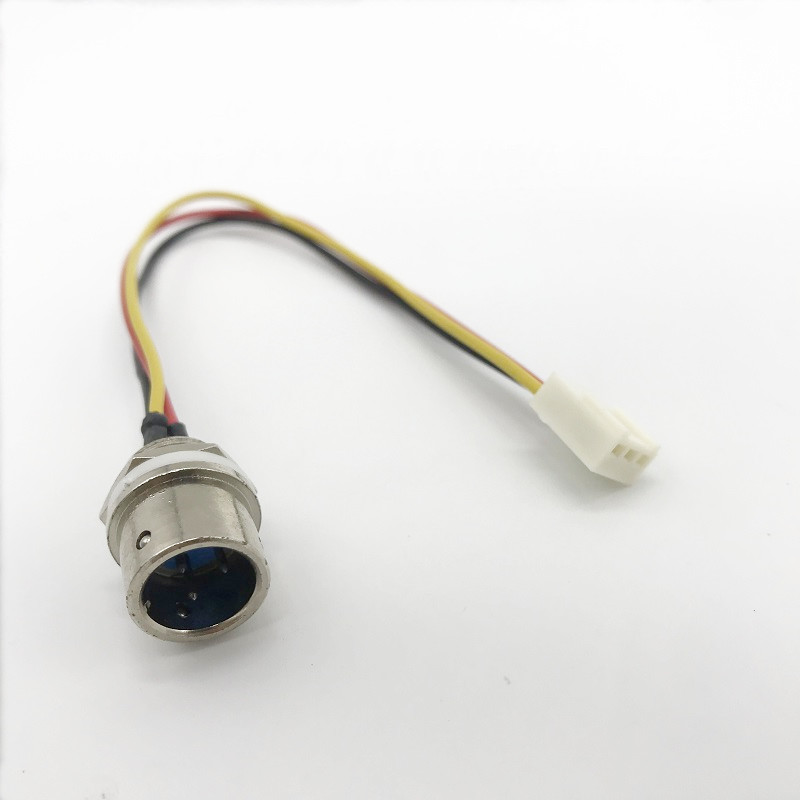

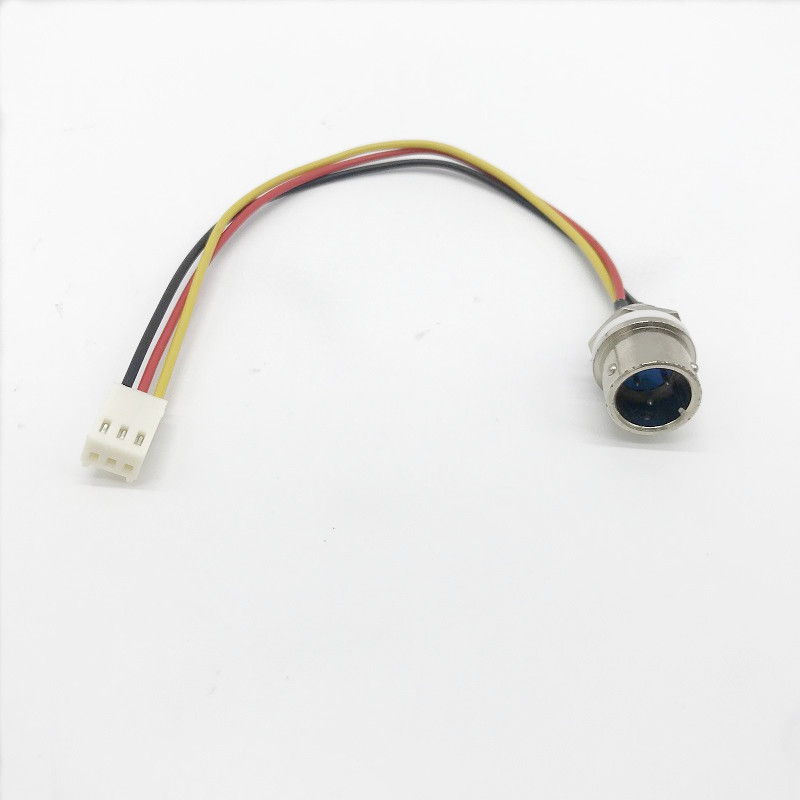

Circular Connector Plug Cable

Molex 2510 3pin to Waterproof Plug Cable
Custom Cable Harness with XS type circular connectors to Molex 2510 3pin connector is mainly for industrial automation applications, machenical devices, computer control machine, etc. We are the professional wire harness manufacturerspecialized in customized wire harness with various kind of connectors, like D-sub, GX circular series,WSP series, RCA, waterproof plastic plug series, OBD and so on. Based on your request, the connectors can be from JST, Molex, TE connectivity, JAE, HRS, Dupont and another brands as you mentioned.


Welcome to contact us for your custom wire harness design.
