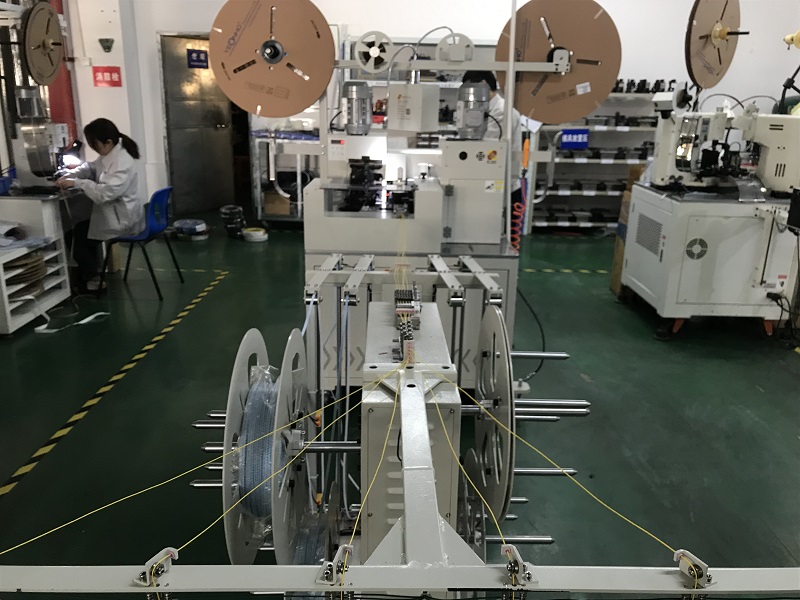

Kehan adds new equipment --- fully automatic double-head terminal machine,CR-08.
The output of electronic wires can reach 3000pcs/h, and the flat cable is 800pcs/h (12pin), which greatly improves the production efficiency and reduces the labor costs.
Double head crimping terminal, all processes are completed automatically, saving production costs for the customers; it uses eccentric shaft and cam structure, the terminal pressing force is balanced, the terminals are crimped neatly, with good consistency, and the defective rate is reduced by about 5% -10%.
| Basic Parameter | Working Pressure | 0.4-0.6Mpa, Dry |
| Working Voltage | AC220V 50HZ | |
| Rating Current | 15A | |
| Working Efficiency | 800pcs/h(12p flat cable), 24h working | |
|
Fuction Parameter |
Flat cables can process two or more at the same time |
|
|
Electronic wire can process 12pcs at the same time |
||
|
Terminals pressing at both ends, at one end, at intervals, at opposite side |
||
|
Middle segment |
||
|
Half-stripping ends |
||
|
Replaceable mold |
||
|
Processing Parameters |
Cutting length | 45-1000mmm(customized) |
| Front stripped length | 0-8mm | |
| Rear stripped length | 0-8mm | |
| Wires | AWG30#-18#flat cable, 26#-18#wires | |
| Max width | 28mm | |
| Max P No. | 24P | |
Find a reliable wire harness factory to complete your orders efficiently!
What are you waiting for, just contact us!
