Wire Harness Assembly

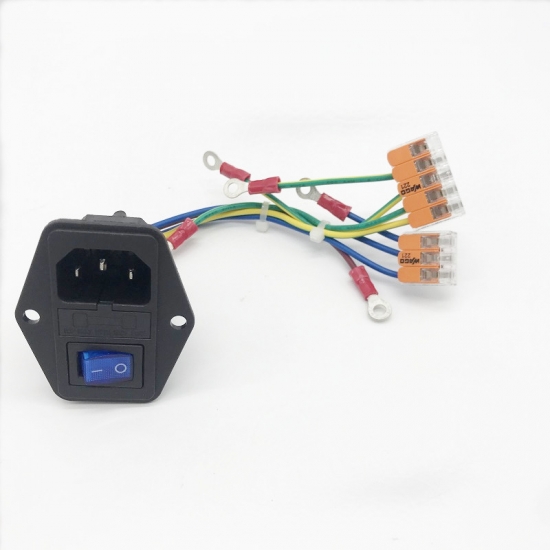

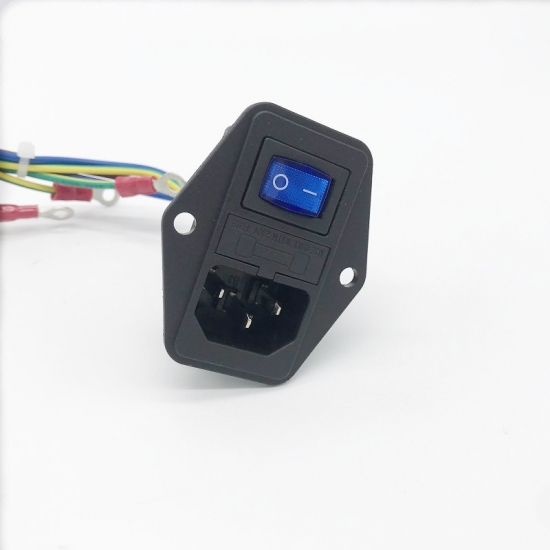

IEC Power Inlet Module 10A Fuse*2 Wire Cable With Lighted Switch

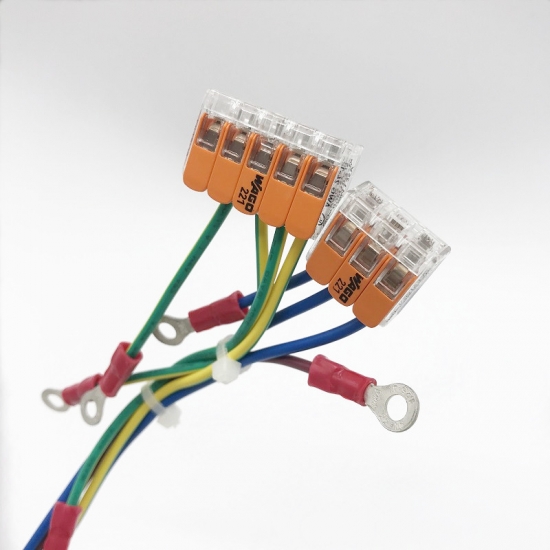

High Quality Blue Light Switch Snap-in Power Inlet, 10A, 250V/110V Fuse *2, with custom made wire harness #6 Ring Terminal and Wago 221 Connector.
  • Brand:

    KEHAN
  • item no.:

    KH-1-044
  • Payment:

    T/T, Paypal, Western Union
  • product origin:

    Xiamen, China
  • Color:

    Black or customized
  • shipping port:

    Xiamen
  • MOQ:

    100
  • Lead Time:

    2-3Weeks
inquiry now
Product Details

DATA REFERENCE---Specification of AC Power Socket Series

Brand KEHAN  Certification  CCC/CE/TUV/RoHS
Humidity
93%+40
Temperature  -40°C~+70°C
External Material Nylon PA66 PC  Contact Material Copper
Rating Voltage
250V 10A Withstand Voltage  AC 500 V 50(Hz)/min
Insulation ≥100MΩ Contact Resistance
≤0.03Ω
Operating Force 5-40N Life Span  10000 times

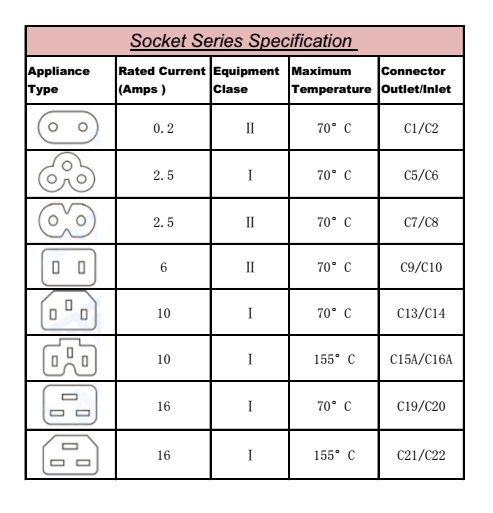

                         Power Socket Series Specification

KEHAN undertake custom manufacturing for various kind of Power Wire Harnesses with IEC Power Inlet/Outlet Modules. AC 3-IN-1 power control switch socket, widely used in industrial equipment, household appliances and other control devices. We will provide 1 to 2 fuses as you need.


Welcome to contact us for more details!
