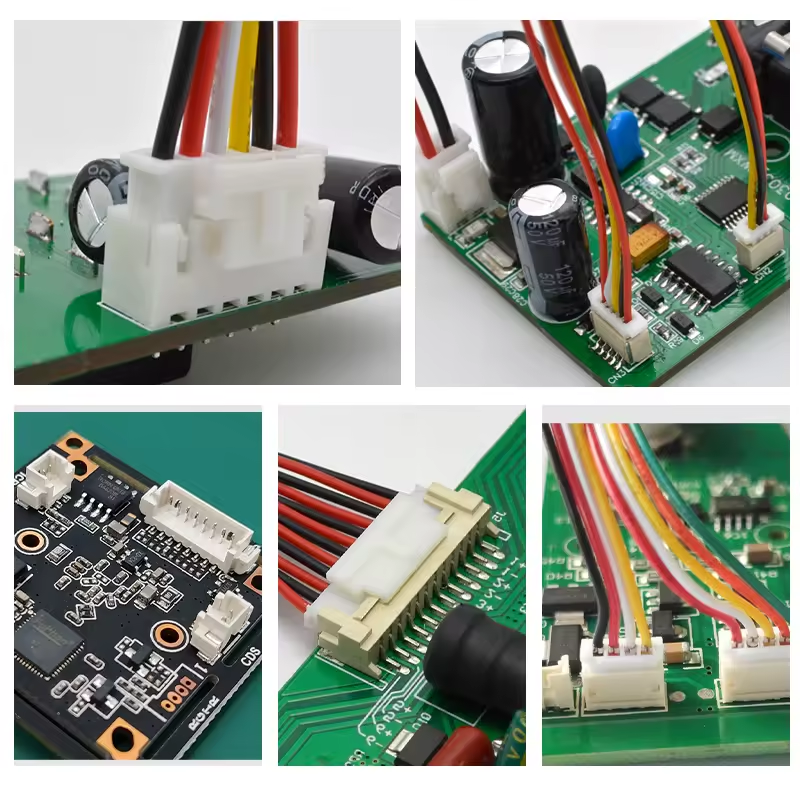

The performance, durability, and total cost of a wire harness are fundamentally determined by the materials selected for its construction. Choosing the right materials for the specific electrical and environmental requirements of an application is a critical engineering decision, requiring a precise balance between performance, regulatory compliance, and cost.

Conductor Material: Balancing Conductivity and Mechanical Properties

• Copper: The industry standard, widely used for its excellent conductivity and flexibility.

• Copper-Clad Aluminum (CCA): Suitable for applications requiring higher strength, though it has slightly higher resistance than pure copper.

• Aluminum: In weight-critical applications like aerospace, solid aluminum conductors can significantly reduce weight, but their termination points require special processing techniques.

Insulation Material: The Key to Temperature and Environmental Resistance
The choice of insulation material is primarily driven by operating temperature and environmental exposure conditions.

• PVC (Polyvinyl Chloride): A general-purpose, cost-effective material with good flexibility and durability, but typically has a lower temperature tolerance (approximately -40°C to 105°C).

• XLPE/PE (Cross-Linked Polyethylene/Polyethylene): Offers better heat and chemical resistance compared to PVC.

• PTFE (Polytetrafluoroethylene): Suitable for extremely high temperatures (exceeding 200°C) and harsh chemical environments, with a low friction coefficient, but it is more expensive and difficult to process.

• TPE/TPU (Thermoplastic Elastomer/Thermoplastic Polyurethane): Possesses high flexibility, durability, and good resistance to oils and chemicals, making them ideal for industrial and outdoor applications.

Shielding: The Barrier for Signal Integrity Protection
To prevent electromagnetic interference (EMI) or radio frequency interference (RFI) from affecting signal quality, a shielding layer must be added. The main forms include:

• Braided Shield: Made from finely woven metal wires, providing good flexibility and interference resistance.

• Foil Shield: Uses an aluminum-polyester laminate sheet for more comprehensive coverage.

• Combination Shield: Integrates both braid and foil to provide the highest level of protection.
  The selection depends on the required protection level, flexibility, and cost considerations.

Outer Jacket and Protection: The First Line of Defense Against Physical Damage
The external sleeve or conduit must effectively protect the internal wire harness from physical damage.

• Polyethylene Sleeving: Lower cost, suitable for basic protection.

• Braided Nylon Sleeving: Provides excellent abrasion resistance and a more professional appearance.

• Corrugated Conduit: Commonly used in automotive and industrial environments, it offers superior crush resistance.

• Heat-Shrink Tubing: Used at connection points to create sealed, strain-relieved, and abrasion-resistant terminations.

In summary, material selection is a comprehensive decision-making process. An excellent wire harness manufacturer will provide professional material selection guidance based on your specific application requirements (including electrical parameters, mechanical stress, environmental exposure, and budget) to ensure optimal harness performance, reliability, and overall value. If you require a more in-depth material analysis for specific application environments (such as high temperature, high vibration, or exposure to specific chemicals), we can explore this further.
