Wire Harness Assembly

UL Approved Custom Wire Harnesses for Vehicle Applications

We make the quality Vehicle Wire Harnesses which are using UL recognized components. Free CAD draft drawing based on your requirements.
  • Brand:

    KEHAN
  • item no.:

    KH-1-001
  • Payment:

    T/T, Paypal, Western Union
  • price range:

    500 - 1000/$21
  • product origin:

    XIAMEN, CN
  • Color:

    Optional
  • shipping port:

    XIAMEN
  • Lead Time:

    2-3 Weeks as usual
inquiry now
Product Details

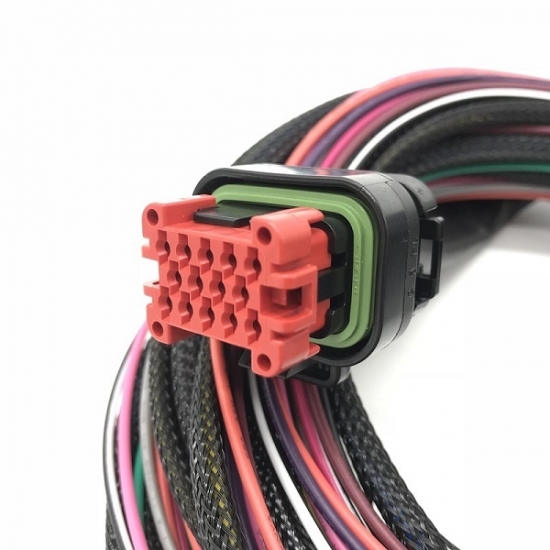

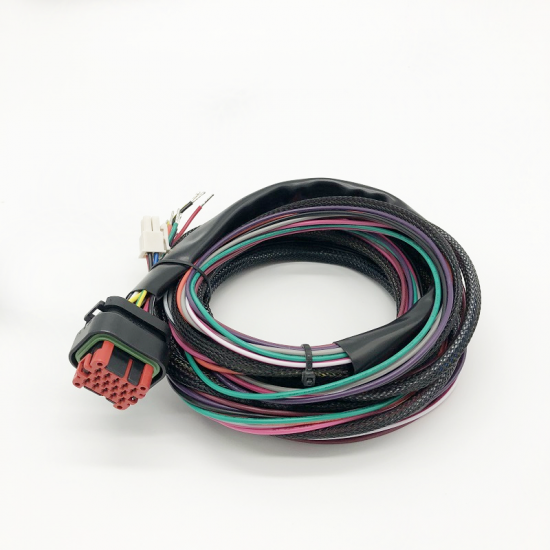

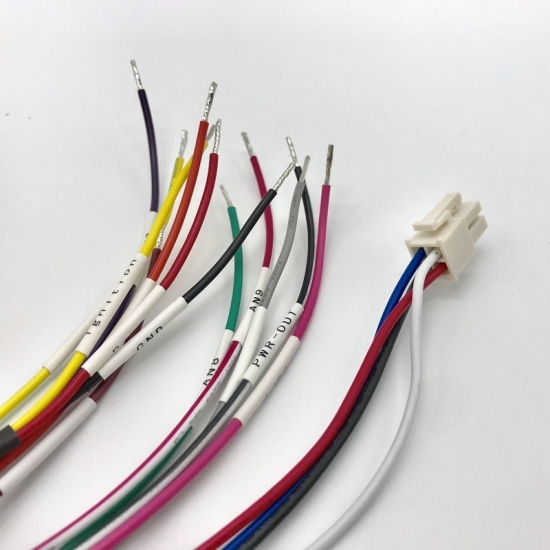

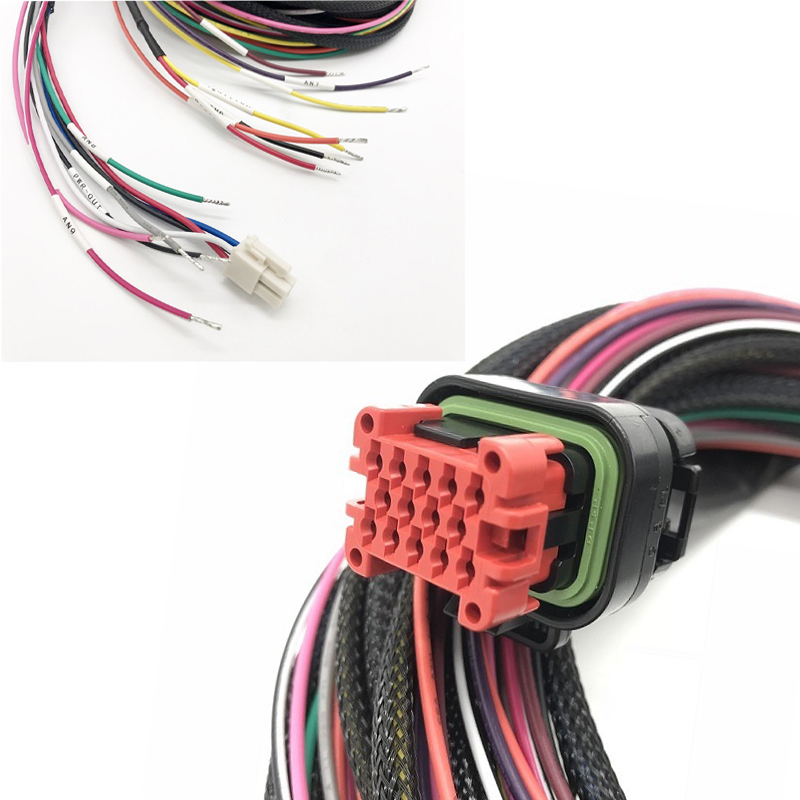

This 2 meters long wire assembly manufactured in KEHAN factory. It combines with 13 different colors of UL1007#18AWG wires joint together with original 14 pin TE connector, and Molex connectors on ends. We use white printed heat shrink tube to distinguish the different function of the every wire, like GND, ignition, power, temper.....


Cable Type
UL1007#18AWG or optional
Color Red/Black/Orange/Purple/Green/or optional
Length 2000mm; 315mm or customized
Connector 1  Tyco manufacturer
Connector 2 Molex manufacturer
RoHS complian    Yes,  materials selection strictly complies with UL standards.

Can accept other

harnesses customized ?

Yes, customized accepted, just feel free to let us know your requirement by sending your drawings or pictures.
More Information
Before the mass production, 2-7 working days to confirm the sample

automotive wiring harness drawing


electric wire harness

wire harnessauto wire harness


cable harness assembly manufacturers






KEHAN focus on quality customized Wire Harnesses and Cable Assemblies for the power connection of automotive, electrical vehicles, home applications, computer, industrial equipment, medical devices, etc.
