Wire Harness Assembly

OEM Repair Automotive Wire Harness Manufacturer

Accept OEM Automobile Wire Harness Assy for your own designs of the part and accessories. Send us an email or fill up the form, our experienced engineers will be your support!
  • Brand:

    KEHAN
  • item no.:

    KH-1-003
  • Payment:

    T/T, Paypal, Western Union
  • price range:

    50 - 100/$21
  • product origin:

    XIAMEN, CN
  • Color:

    as the drawing
  • shipping port:

    XIAMEN
  • Lead Time:

    2-3WEEKS
inquiry now
Product Details

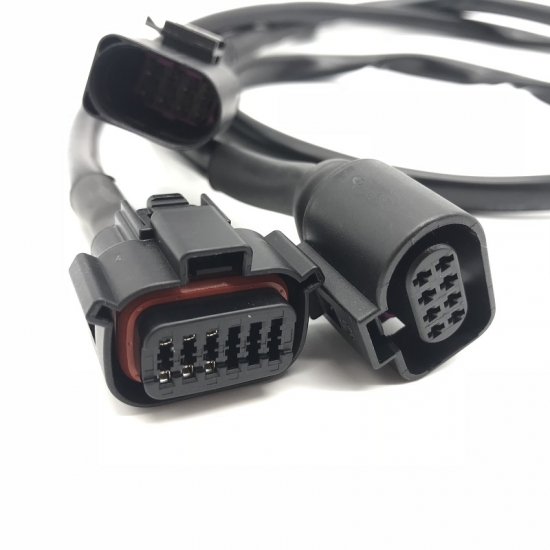

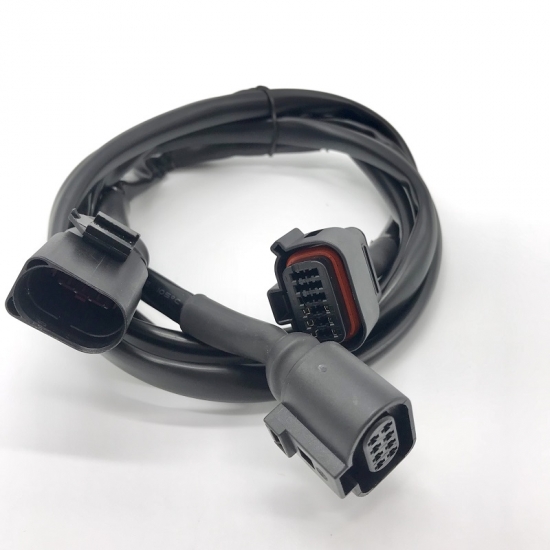

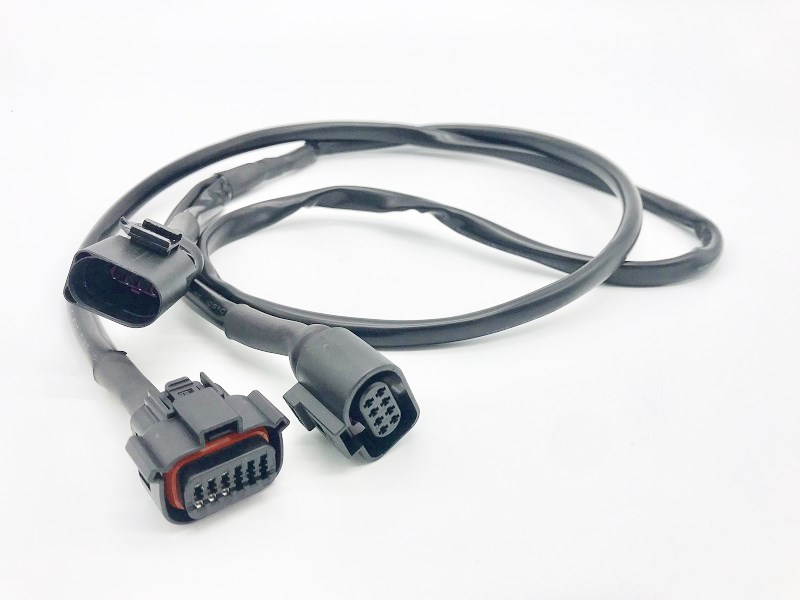

We build this wire harness for repair in car, especially for Volkswagen and BMW. There're two connectors are original manufactured VW connectors from Germany, and one Molex connector. Here's covered with non-heat shrinkable PVC tube through whole cables, from the ends are fixed with adhesive heat shrink tube.


Product Name Auto Wire Harnesses for VW
Wire  UL 1569 #20AWG
Length  Customized
Color  Red, Black, Blue, Orange, Purple or customized
Connector 1 Waterproof 1J0-973-714
Connector 2
Waterproof 1J0-973-814
Connector 3
Molex 36792-1201
Other Materials  PVC tube, glue tube
Can accept other harnesses customized? Yes


VW Custom Wire Harness Diagram

Auto Wire Harness Assembly


  • Test Condition

1. 100% short, open circuit test

2. Insulation resistance 50 KΩ; Conduction resistance 5Ω







Our Wire Harness Cable manufactured based on customer's specified car design, and also of the Universal Standard Wire Harness. They are equal to the standard quality. Contact us for these harnesses of car audio & stereo Pigtail Wiring Harness, Headlight wire harness replacement,  signal wire harness, etc.
