Wire Harness Assembly

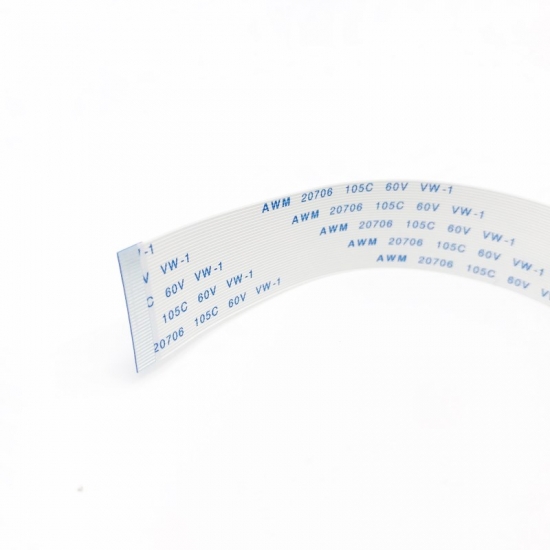

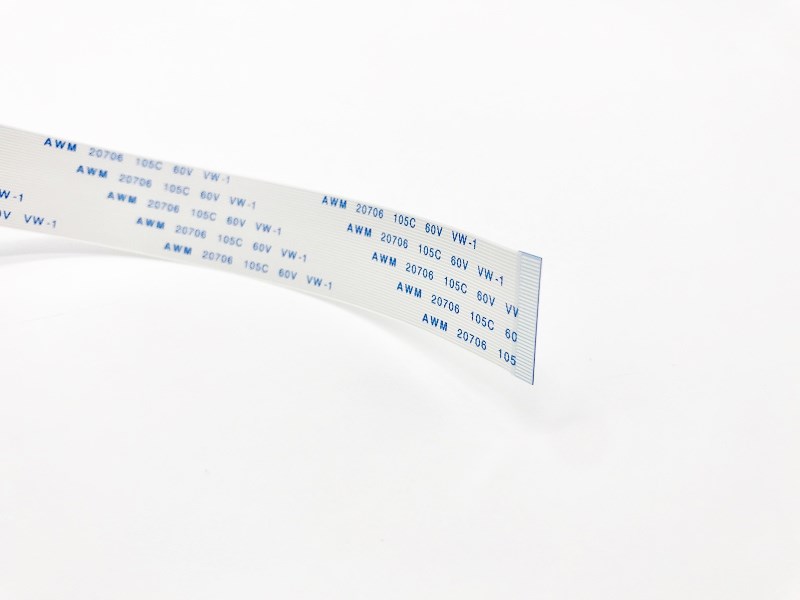

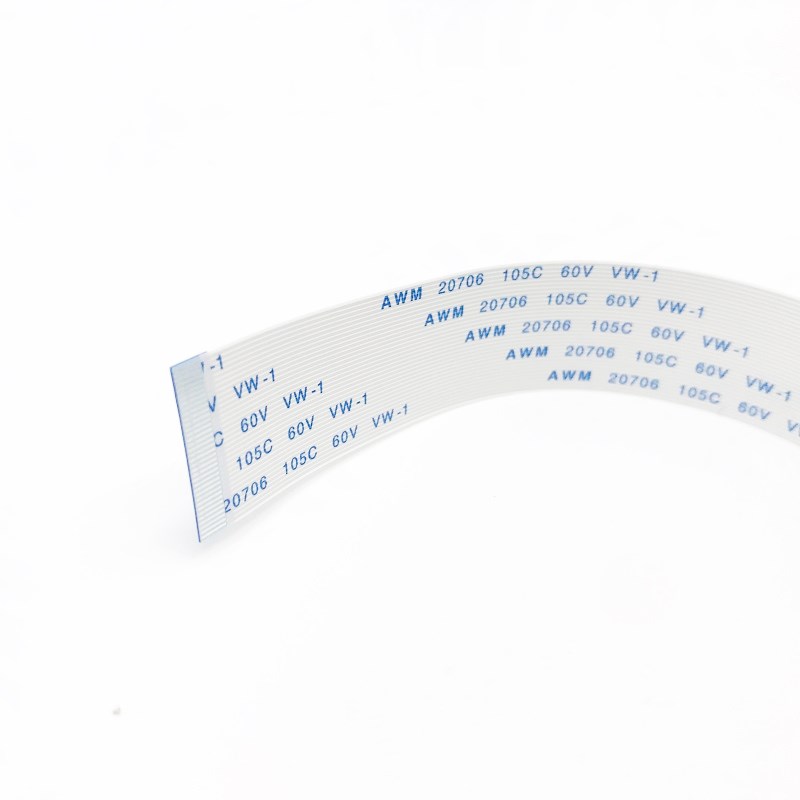

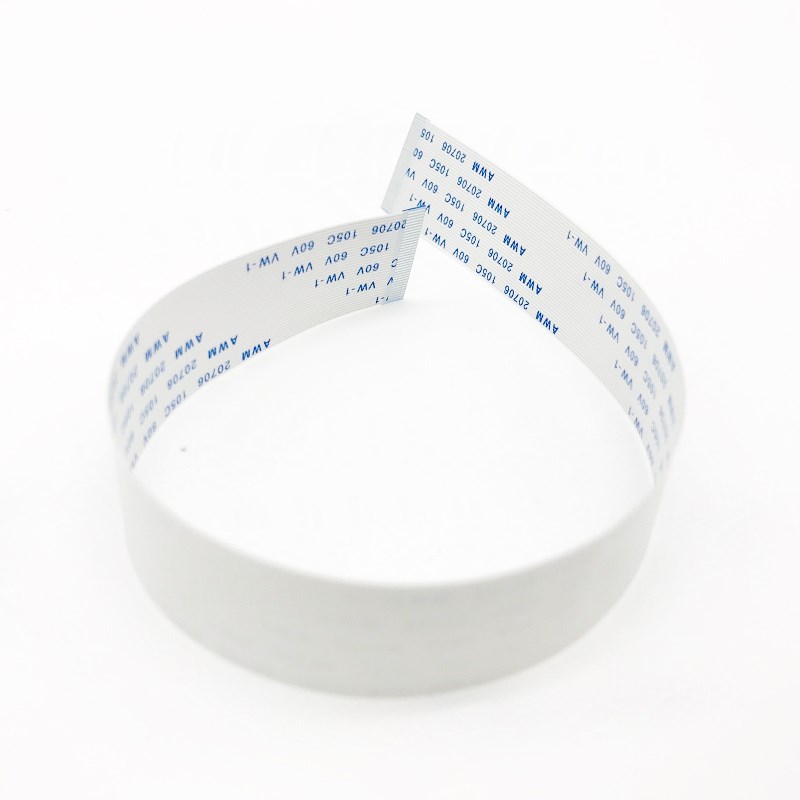

AWM 20706 105C 60V VW-1 FFC Cable

FFC cable has the characteristics of softness, acid resistance, oil resistance, moisture resistance and mildew resistance. The customized FFC cable an be applied to digital products, aircraft, vehicles, computers, printers, projectors, etc.
  • Brand:

    KEHAN
  • item no.:

    KH-2-006
  • Payment:

    T/T, Paypal, Western Union
  • product origin:

    XIAMEN, CN
  • Color:

    Customized
  • shipping port:

    XIAMEN
  • Lead Time:

    2-3WEEKS
inquiry now
Product Details

High quality environmental friendly FFC flat cables, customized length with different type pitch of 0.3mm/0.5mm/0.8mm/1.0mm/1.25mm/2.0mm/2.54mm.


Specification  1.0mm pitch 10pin
Length
50mm or customized
Film 20706
Rating Temperature  105°C
Withstand Voltage  60V
Maximum Conductor Resistance at 20°C 25KΩ/km
Insulation PET material
Conductor  tinned copper


20706 105C

awm ribbin cable

ffc flexible



  • FFC cable pitch (pitch) is:
     0.3 pitch, 0.5 pitch, 0.8 pitch, 1.0 pitch, 1.25 pitch, 1.5 pitch, 2.0 pitch, 2.54 pitch
      0.3 pitch copper wire: 0.035*0.16
     0.5 pitch copper wire: 0.035*0.3 0.05*0.3 0.08*0.3
     0.8 pitch copper wire: 0.035*0.5 0.05*0.5 0.1*0.5
     1.0 pitch copper wire: 0.035*0.65 0.05*0.65 0.1*0.65 0.05*0.6 0.1*0.6 0.035*0.7 0.05*0.7 0.1*0.7
     1.25 pitch copper wire: 0.035*0.8 0.05*0.8 0.1*0.8
     1.5 pitch copper wire: 0.035*0.5 0.05*0.5 0.1*0.5
     2.0 pitch copper wire: 0.035*0.65 0.05*0.65 0.1*0.65 0.05*0.6 0.1*0.6 0.05*0.7 0.1*0.7

     2.54 pitch copper wire: 0.035*0.8 0.05*0.8 0.1*0.8

  •  Flat line printing UL number: 20624 20696 2896 20798 20706


  •  The thickness of PET polyester film is: 37U, 43U, 60U, 65U, 92U, 100U, 105U
