Wire Harness Assembly

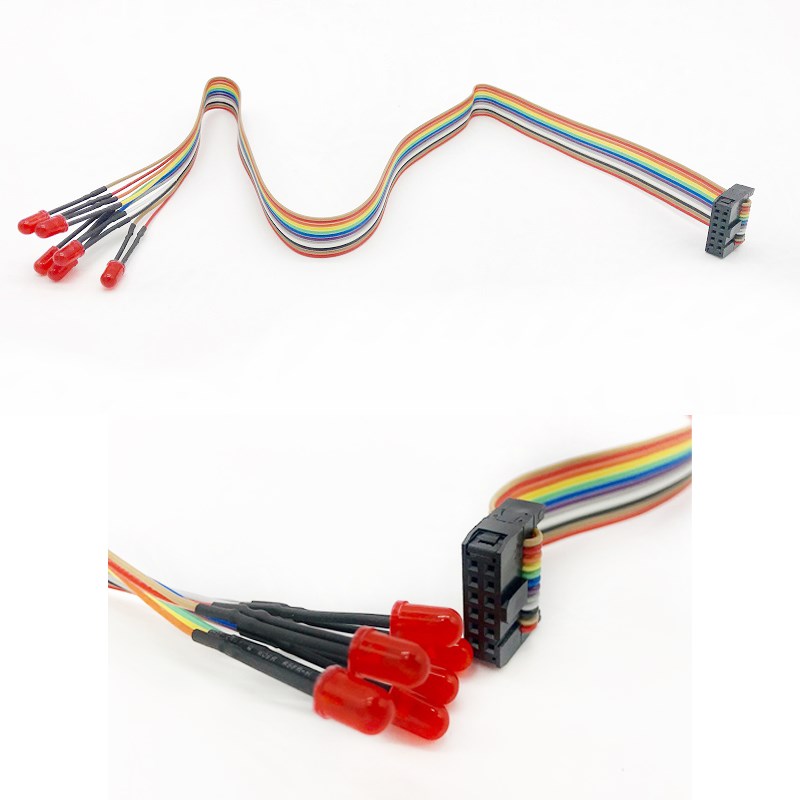

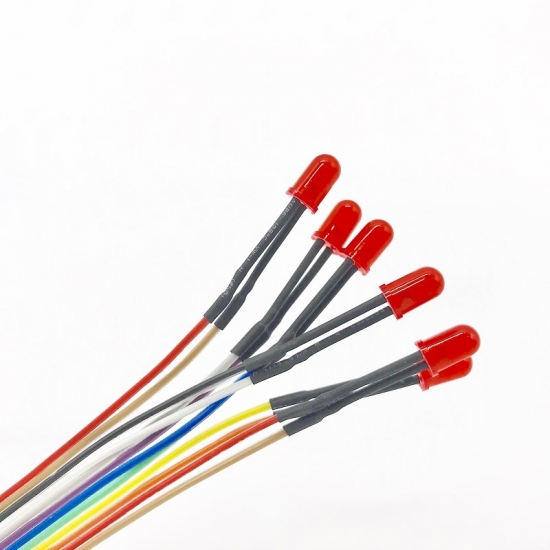

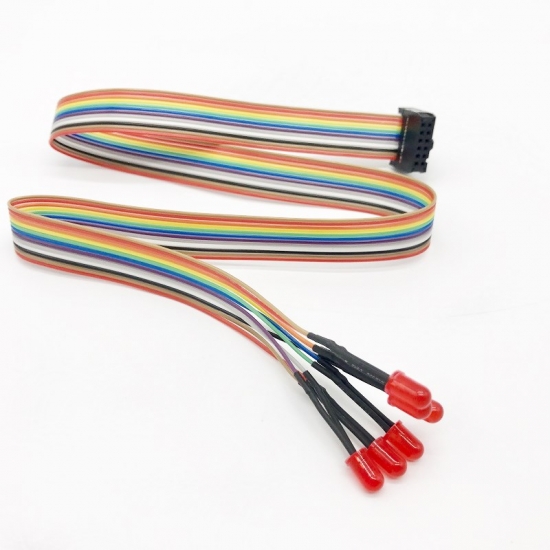

12P Rainbow IDC Flat Cable Soldering with 5mm LED Bulbs

Find best buy flat cables with 5mm LED Light Bulbs on KEHAN. This cable is customized for the signal indication on the electronic PCB board.
  • Brand:

    KEHAN
  • item no.:

    KH-2-002
  • Payment:

    T/T, Paypal, Western Union
  • price range:

    500 - 1000/$1.9
  • product origin:

    XIAMEN, CN
  • Color:

    customized
  • shipping port:

    XIAMEN
  • Lead Time:

    1-2weeks
inquiry now
Product Details

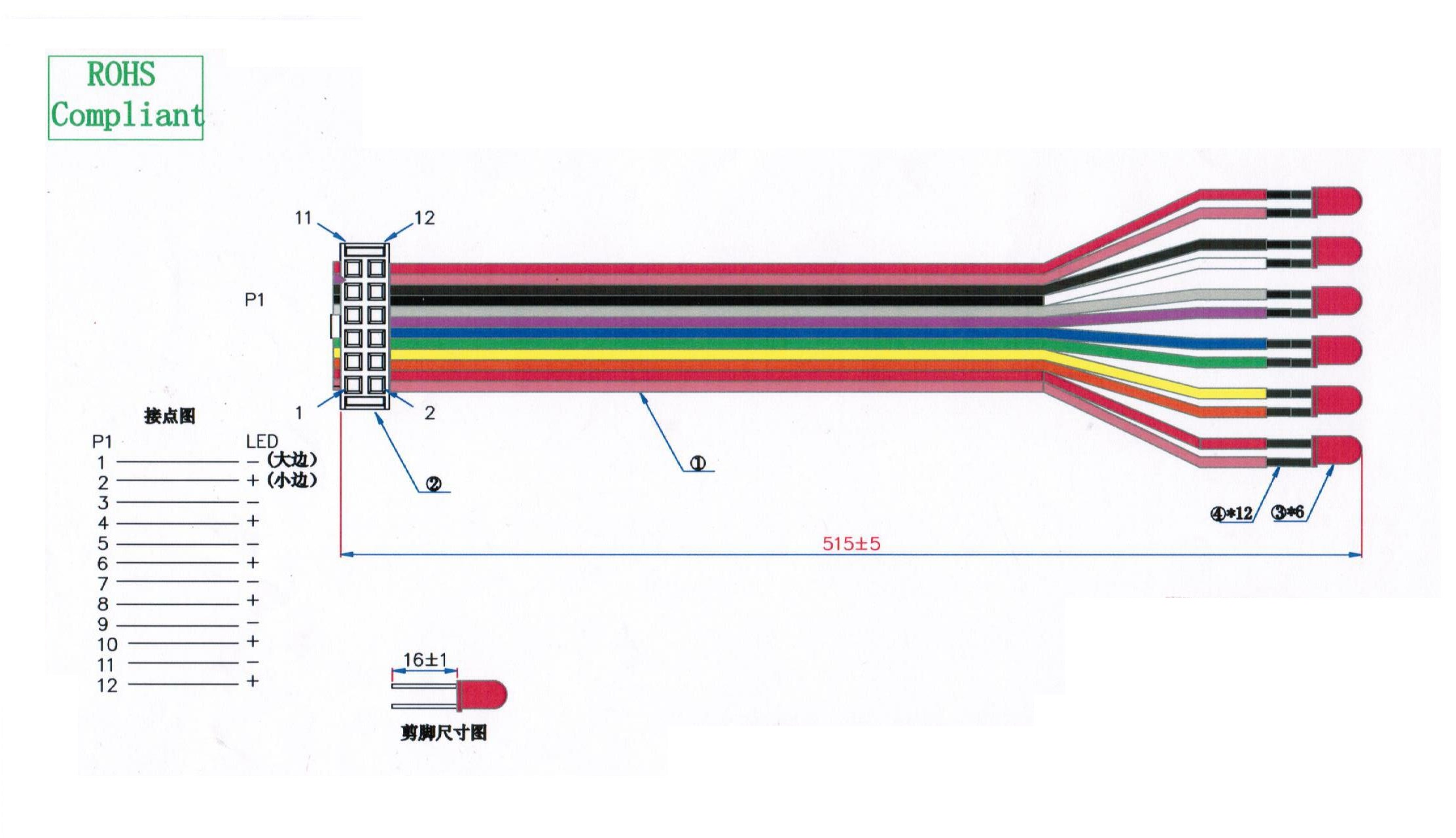

Product Name  Jumper Wires with Red LED Light Bulbs
Cable UL 2651#28AWG 12P Pitch=2.54mm rainbow flat cable
Color customized
Length 515mm
Connector  2.54mm IDC black, terminal gold plating
LED light  φ5.0 Red
Other  heat shrink tube
Can accept other cable customized? Yes


Test & Advantages


Customized Jumper Wires with LED Light Bulbs for Testing, for your easy inspection, lights on is passed, lights off is failed.

Materials are UL listed selection, and the cables are 100% electrical test before the delivery, you can be assured the quality are all in good condition.
