Wire Harness Assembly

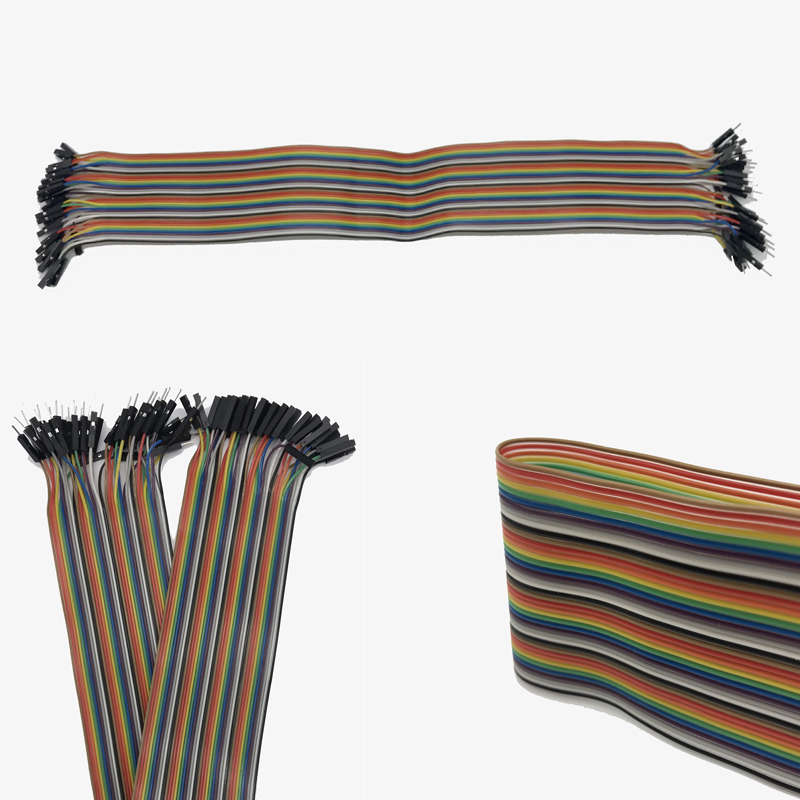

Standard 40pin Male to Female Colored Jumper Wire Cable

Factory manufactures rainbow flat ribbon cable with male-male Dupont connectors. Contact us for other designs, like flat IDC ribbon cables, ribbon cables with LED light.



  • Brand:

    KEHAN
  • item no.:

    KH-2-001
  • Payment:

    T/T, Paypal, Western Union
  • price range:

    1 - 4/$1000
  • product origin:

    XIAMEN, CN
  • Color:

    Colored
  • shipping port:

    XIAMEN
  • Lead Time:

    2-3 Weeks as usual
inquiry now
Product Details



Cable Types
UL2651#28*40P PITCH 1.27 rainbow flat cable
Color Red/Black/Orange/Purple/Green/or optional
Length As per customer's request
Connector Dupont manufacturer
RoHS compliant  Yes
Can accept other harnessescustomized? Yes
More Information Before the mass production, 2-7 working days to confirm the samples

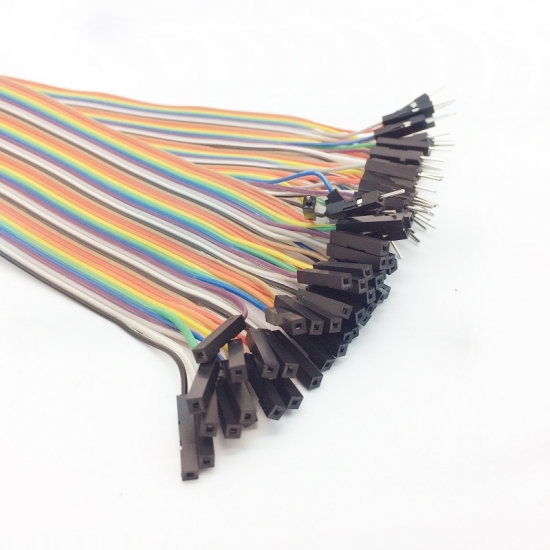

Female to male electrical Jumper Wire


  • TEST ITEMS
Dimension
Total Length
 50cm
Part Dimension
  /
Stripped Ends
  /
Electric Test 100%short, open test
  ok
Insulation Resistance 50KΩ
  ok
Conduction Resistance 5Ω
  ok

Visual Inspection

Reference QIP

  ok

Terminal Tensile Test  The connection between the terminal and the wire shall be firm and shall not be damaged or disengaged under the specified tension. The value of the tension shall not be less than the standard.
ok



  • APPLICATIONS

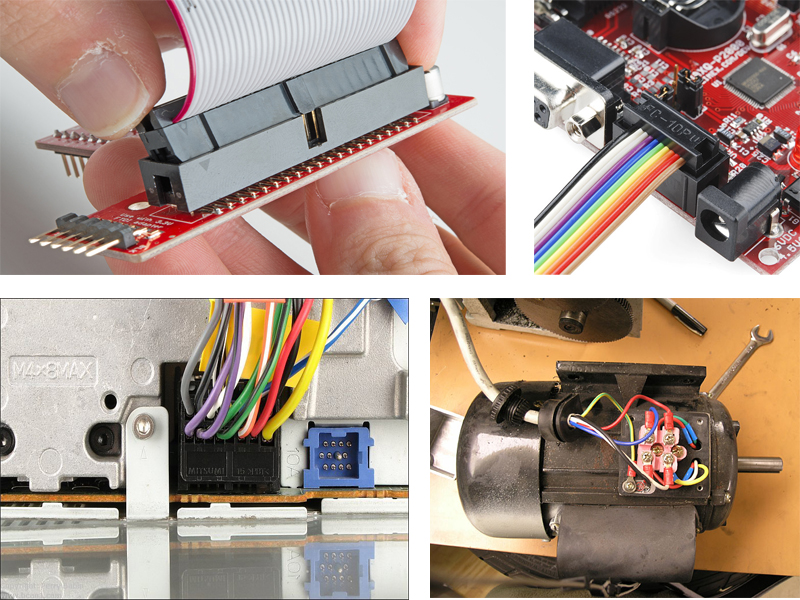

KEHAN focus on quality customized UL2651 28awg Flat Ribbon Cable for the interconnection on the electronic PCB board, electric devices, or for the leading line out of the large machines, light fixtures, motors and so on.
