Wire Harness Assembly

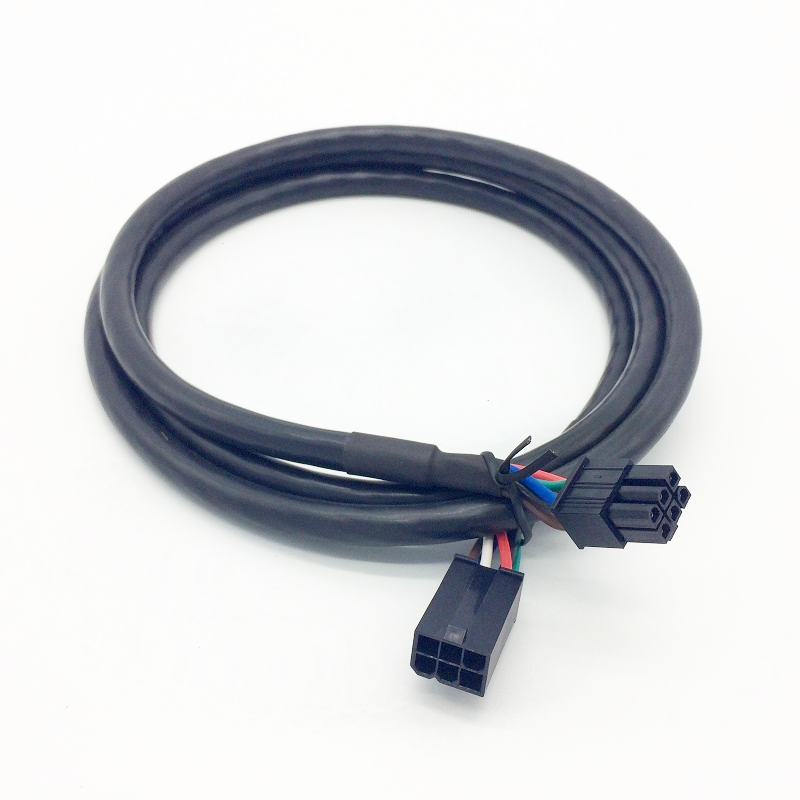

Molex Cable Assembly MINI FIT REC 6POS 555706RBLACK

Custom electri cable assemblies with genuine Molex MINI FIT REC 6POS 555706R BLACK to MINIFITJR 6CKT PLUG DR V0 BLACK. Contact us now, you can get 10% off by using white color connector.


  • Brand:

    KEHAN
  • item no.:

    KH-1-011
  • Payment:

    T/T, Paypal, Western Union
  • product origin:

    XIAMEN, CN
  • Color:

    Black or customized
  • shipping port:

    XIAMEN
  • Lead Time:

    2-3WEEKS
inquiry now
Product Details
Product Name  Molex 6 Pin Cable Assemblies
Cable  UL 2464#18AWG black

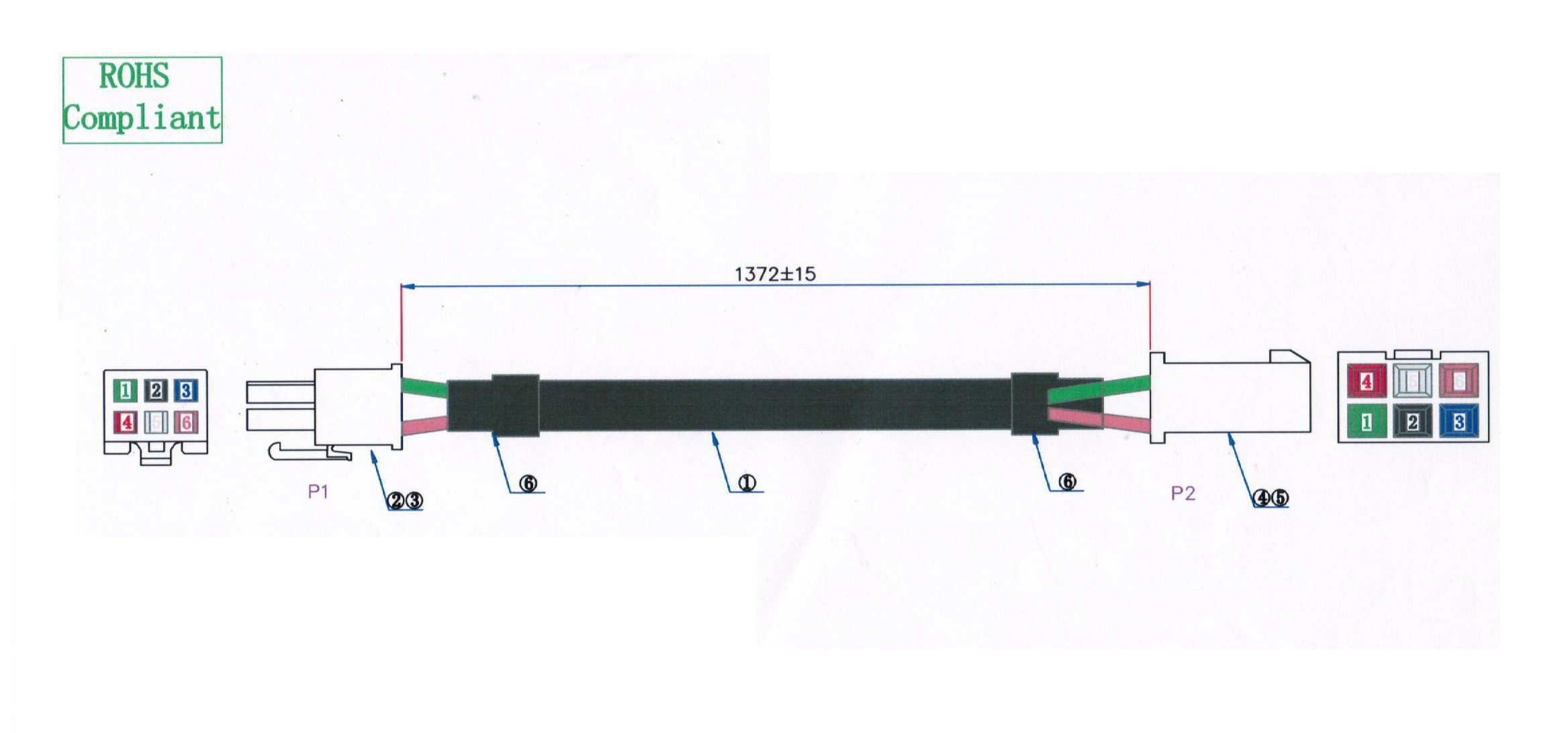

Length 1372mm or customized
Connector  Molex manufacturer
Certification UL, RoHS
Test 100% open & short circuit, insulation resistance 50 KΩ, conduction resistance 5 Ω
Can do other cable assemblies customized? Yes


Molex Pinout

Molex Wire Pins

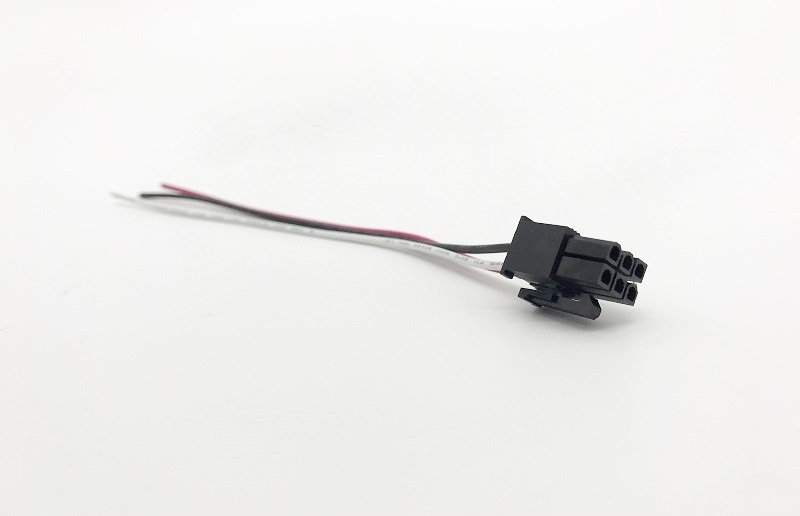

Cable Assembly 6Pin Molex Mini-Fit Jr

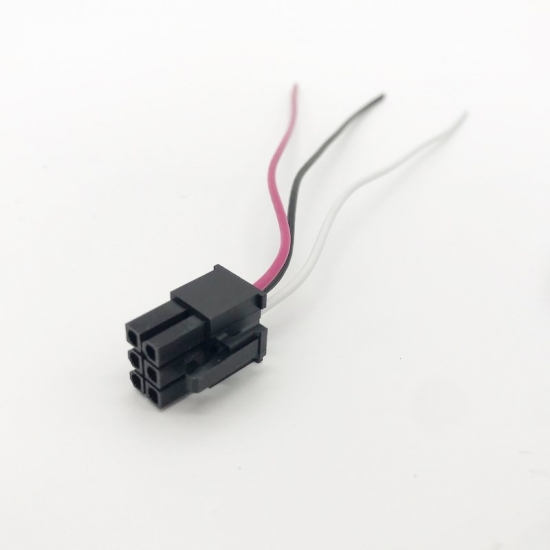

Molex Wire Connectors

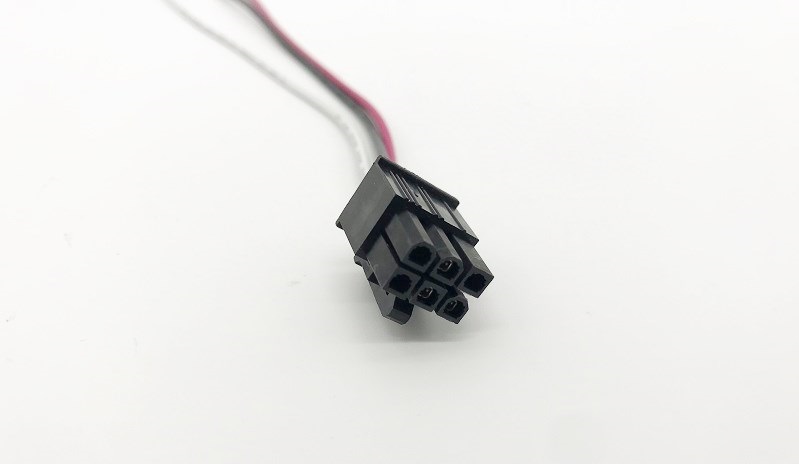

Molex Mini 6 Cavity Fit JR Connector


Need our help to quote cable harness? We are so pleased to offer you the reasonable prices and best services. No worries about the small quantity, our MOQ is as low as 100pcs per kind of cable, or even small. Please feel free to contact us!
