Wire Harness Assembly

Waterproof IP67 USB 2.0 Cable With Silicone Cover

Customized waterproof USB cable assemblies with different types of USB connectors.
  • Brand:

    KEHAN
  • item no.:

    KH-4-007
  • Payment:

    T/T, Paypal, Western Uinon
  • product origin:

    Xiamen, CN
  • Color:

    Black or Customized
  • shipping port:

    Xiamen
  • Lead Time:

    2-3WEEKS
inquiry now
Product Details

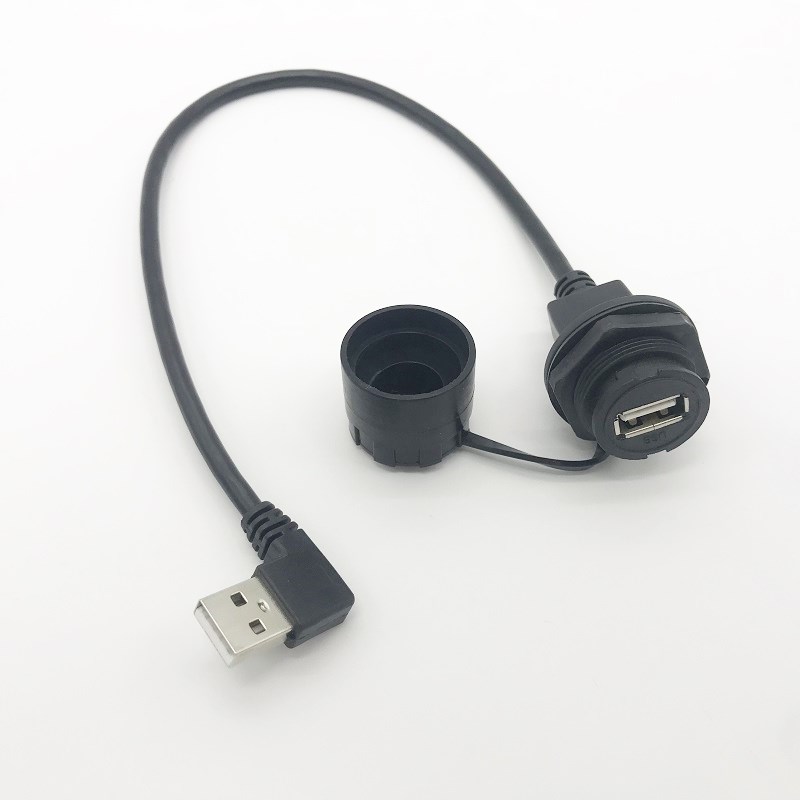

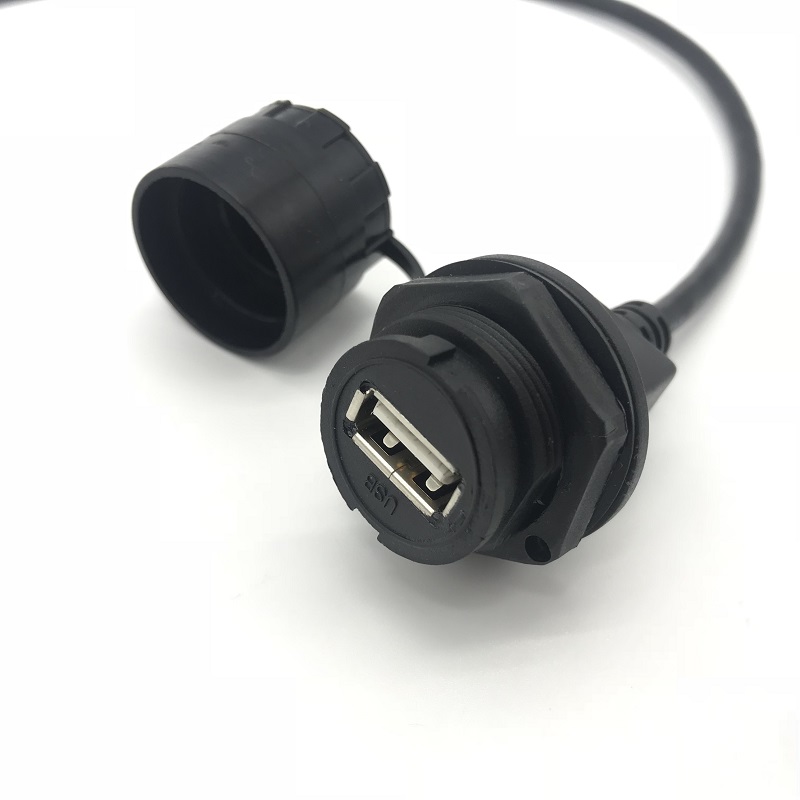

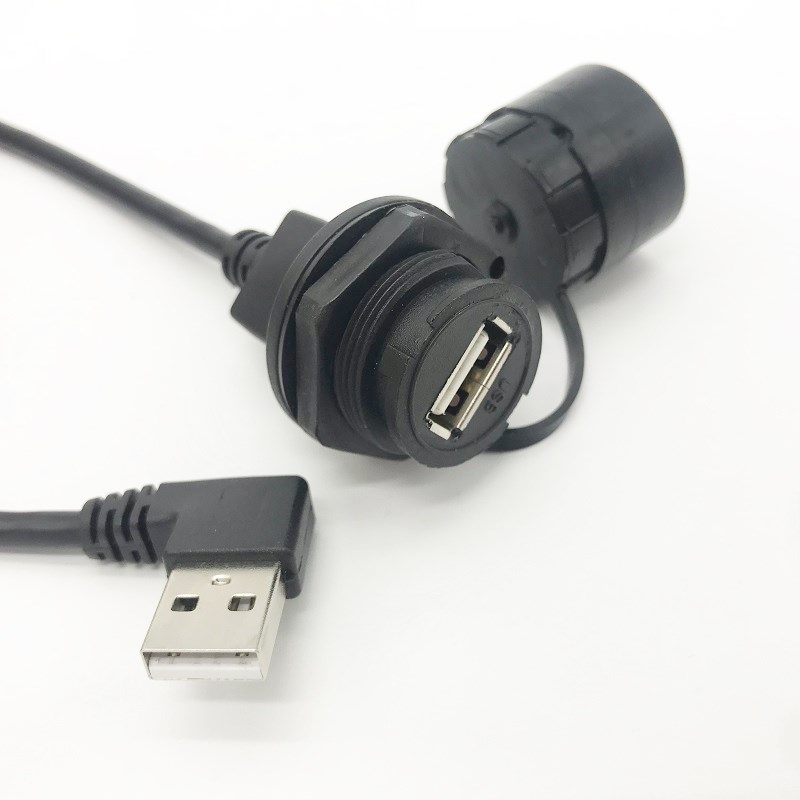

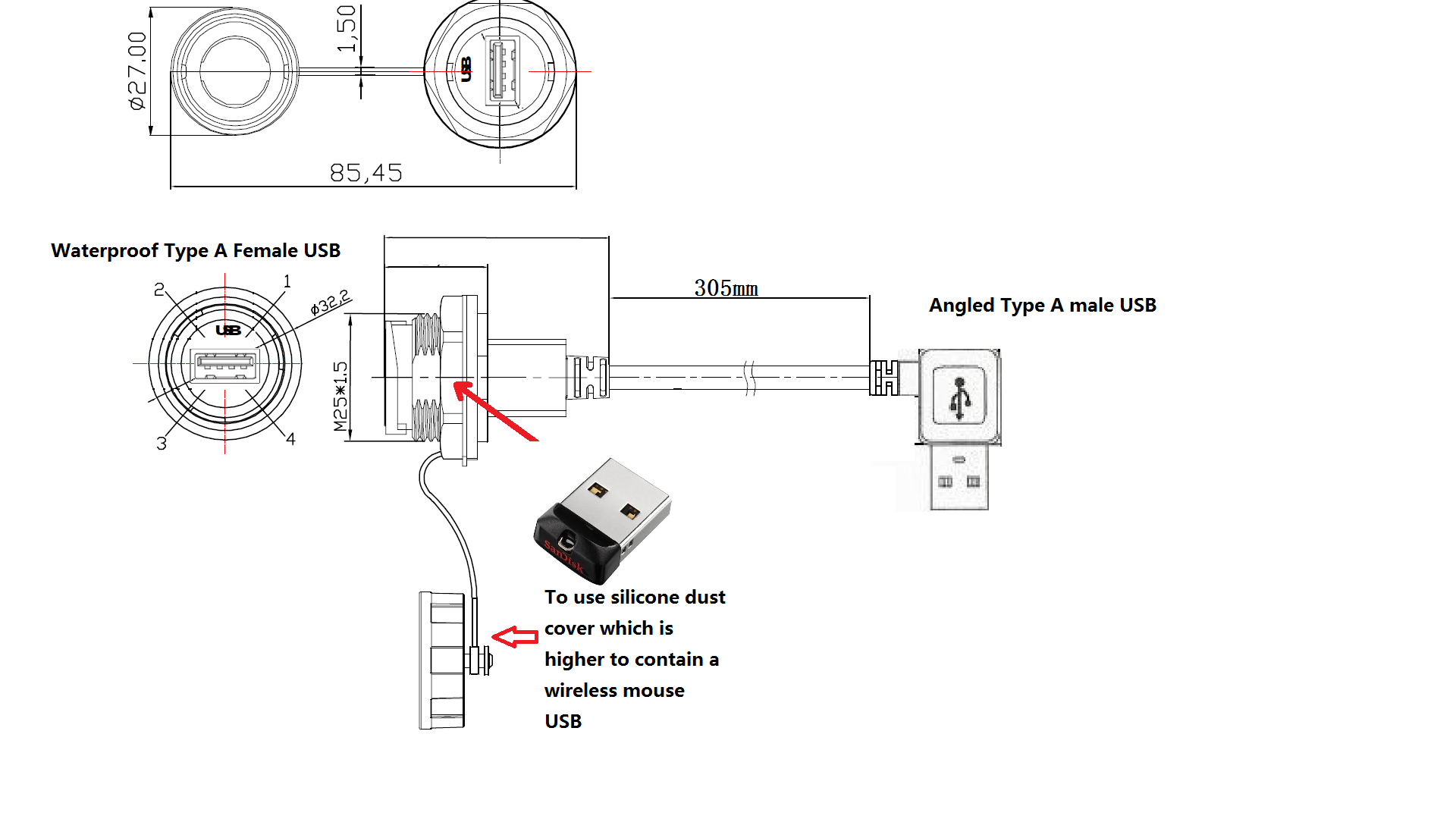

Hi! Gladly you are here! We feel very excited to meet you and introduce you the product. This is the waterproof USB Type A female to angled Type A male USB. We custom made it for the customer from the US. We take silicone dust cover instead of using the plastic one. It is higher and has more space so that it can contain a wireless mouse USB.


Cable UL2725 28AWG *1Pair+24AWG 2C+D(24AWG)+AL OD 4.6 PVC Jacket
Length 210mm or customized
Connector 1 Waterproof Type A female USB
Connector 2  Angled Type A male USB
Conduct Copper
Hood  Molded 45P PVC black
Protection Level  IP67
Electrical Performance
Rating Voltage
30V
Insulation Resistance  ≥100 MΩ
Rating Current  1A
Conduction Resistance ≤50 MΩ
Rated Temperature
-20°C~+80°C



Waterproof USB

Waterproof USB 2.0 A Female Socket to Male Extension Cable

Waterproof USB Panel Mount

Waterproof USB Cable
