Wire Harness Assembly

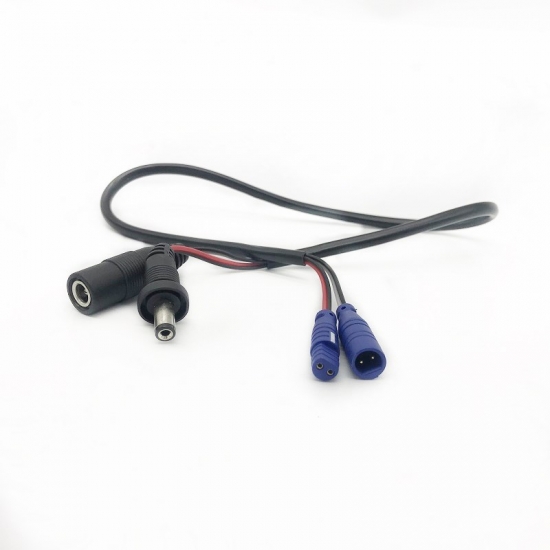

Waterproof DC Power Supply Cable Multi Connectors

The waterproof DC cable assembly is the adapter cable which is specially built for the sensor in smart home application. We are committed to manufacturing more cables comply with ROHS or REACH standard.
  • Brand:

    KEHAN
  • item no.:

    KH-3-008
  • Payment:

    T/T, Paypal, Western Uinon
  • product origin:

    Xiamen, CN
  • Color:

    Black or Customized
  • shipping port:

    Xiamen
  • Lead Time:

    2-3WEEKS
inquiry now
Product Details
Product Name  Custom DC Power Cable Assembly
Cable  UL2468#26AWG  with black jacket tube
Length 20cm or customized
Connector 1 DC connector 5.5*2.1mm, jack and plug
Connector 2 DC connector waterproof male to female
Other  Mark printed(RoHS)
Certification UL/REACH/RoHS


Technical Requirements:

1. Injection over-molded with smooth surface, no burrs

2. No obvious injection marks, shrinkage, deformation, etc.

3. The gate must be flattened

4. The un-molded draft angle is less than 1°

5. Un-molded chamfered, rounded to C/R 0.3

6. Solderability: good diffusibility, the position of the soldered material does not cause the weld surface to detach;

7. The temperature is controlled at 250+/-10°C, the soldering time is 3-5 seconds, and the body has no abnormality.

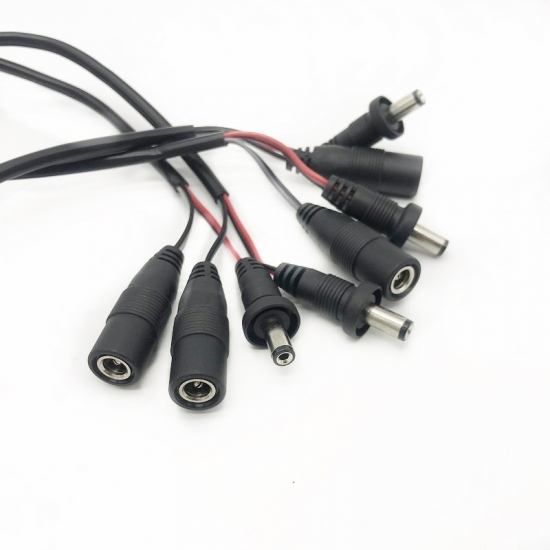

Waterproof DC Power Connector Cable Assembly
