Double Row Pin Header 2.54mm PCB

Find our quality wire to board connectors with HSF and UL approved. Female Socket and Pin Header 2.54mm IDC.
  • Brand:

    KEHAN
  • item no.:

    KH-6-005
  • Payment:

    T/T, Paypal, Western Union
  • price range:

    500 - 1000/$0.129
  • product origin:

    XIAMEN, CN
  • Color:

    Black
  • shipping port:

    XIAMEN
  • Lead Time:

    1-2weeks
inquiry now
Product Details

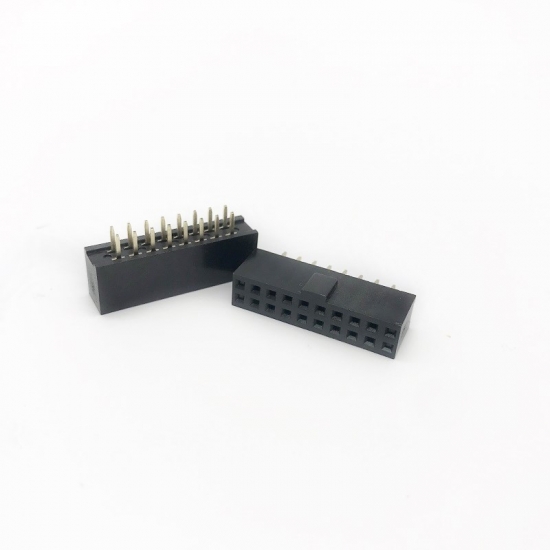

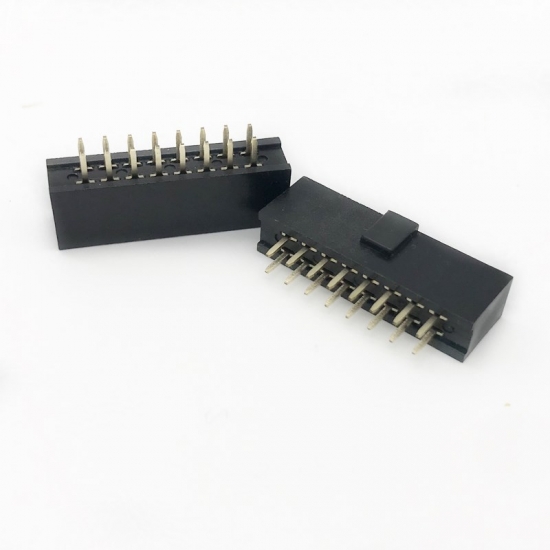

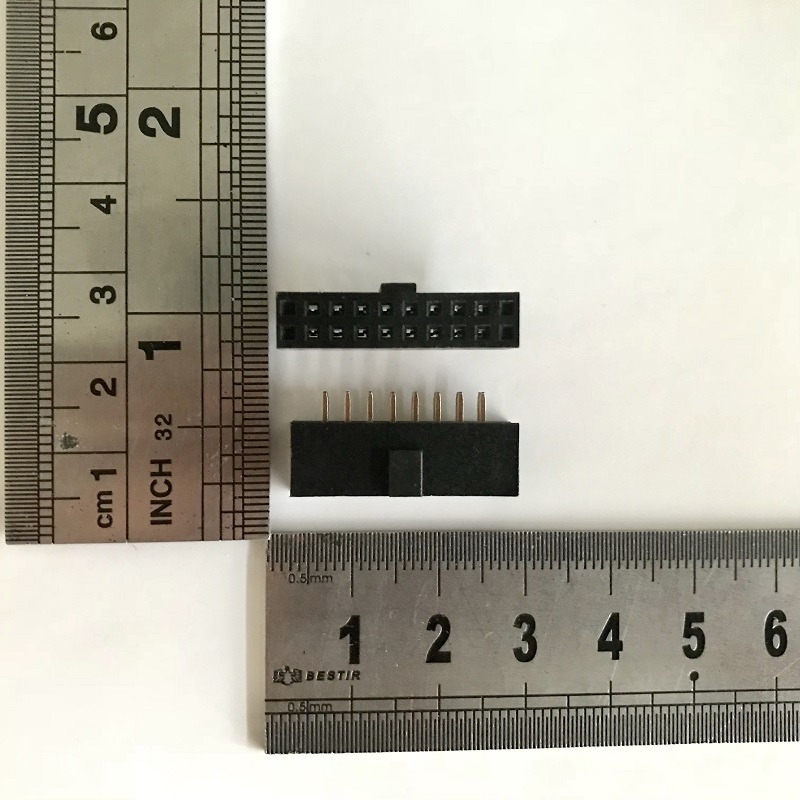

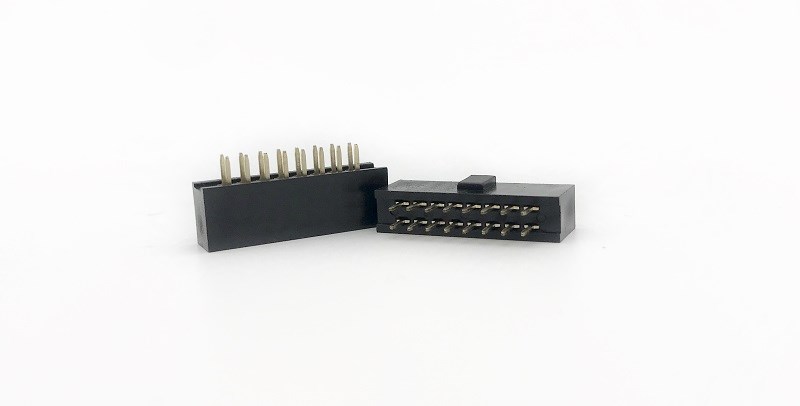

Product Name  2.54mm Pitch Pin Header Female Socket
Certification  HSF, RoHS, UL
Contact Material Brass
Contact Plating  Au Over Ni
Insulator Material  Polyester (UL94V-0)
Standard PA6T
Max. Processing Tem 230°C for 30-60 seconds; 260°C for 10 seconds
Rated Current
3.0Amp
Contact Resistance  20mΩ Max
Withstand Voltage  1000C AC/DC
Insulation Resistance  1000MΩ Min
Operation Temperature -40°C to +105°C


Pin Header

Double Row Pin Header Female




More Information


1. Package: Bubble bag, polybag, carton

2. Package size: 21×12×14(cm)

3. Shipment: There're shipping way of DHL, TNT, UPS, FedEx, EMS you can choose from, we will check the most competitive way according to your request.
