Wire Harness Assembly

Custom USB Cable A Type Male to USB 12 Pin Connector

Find Customizable USB Charging Cables? We make the quality USB cables with A type male USB to Samsung 12Pin USB connector. Send us your drawing to find our best services.


  • Brand:

    KEHAN
  • item no.:

    KH-4-002
  • Payment:

    T/T, Paypal, Western Union
  • price range:

    500 - 1000/$3
  • product origin:

    XIAMEN, CN
  • Color:

    White
  • shipping port:

    XIAMEN
  • Lead Time:

    2-3WEEKS
inquiry now
Product Details
Product Name Standard Type A USB Male To 12 Pin USB Connector
Cable  UL2725 28AWG*2C OD=3.5mm
Length 1200mm or customized
Color White
Connector 1 USB 12Pin CONN.
Connector 2 USB A Type Male; Contact: Gold Flash
Other  PVC 45P
Accept other cables customized  Yes


usb cable wire color diagram

USB to USB Cable usb cable samsang




  • Technical Requirement


           1. 100% open and short Test

           2. Insulation Resistance: 5 MΩ/Min;  Connect Resistance: 2Ω/Max

           3. Test Voltage DC 300 V at 10ms

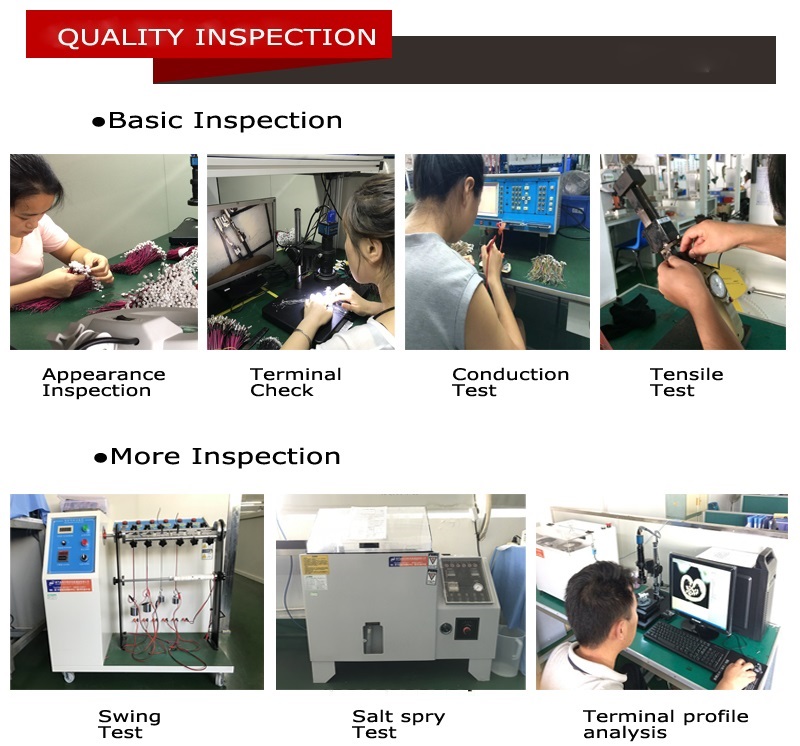

  • Quality & Services

         1. Presenting materials quality clarification like SGS/UL/RoHS.

           2. Samples confirmation before the mass production.

           3. QC Test Report before the delivery.






Fill in the form to find your products quality guaranteed!



SEND A MESSAGE

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

New Products
Related Product
12 Pin Custom USB cable for Medical Devices 12 Pin USB Cable with JST SHR 1.0mm Pitch Connector
Flexible 32AWG jacket cable molded with mini USB 12 Pin connector, which is made for the medical test devices. Our products comply with RoHS UL and ISO9001 quality standard.

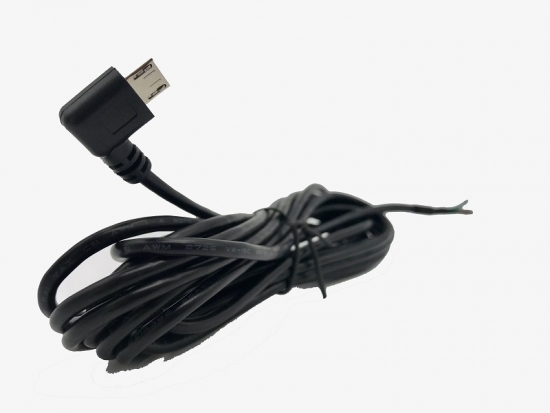

UL Approved 28AWG Right Angle Male Micro B USB cable USB Cable Assembly Right Angle Micro 2.0 USB B Cable
