Wire Harness Assembly

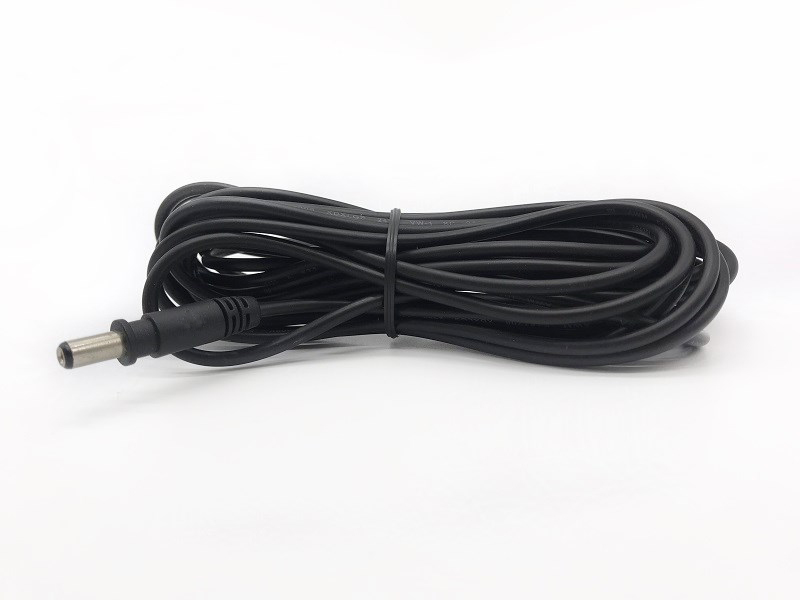

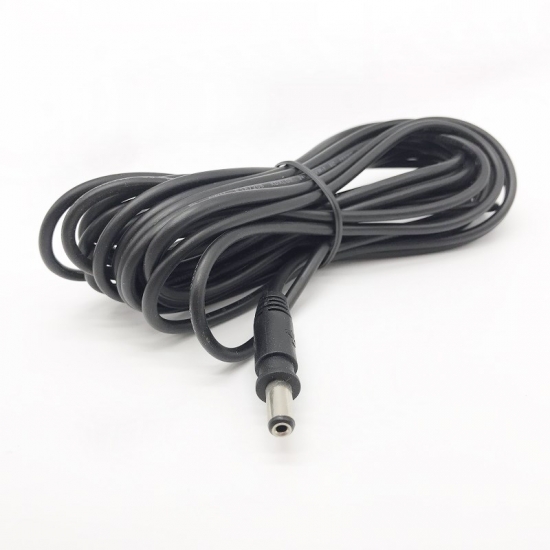

5.5mm DC Plug Power Extension Cable

We do customized 5.5mm dc plug power extension cable, so the prices are different based on your requirement. Please email us or fill in the message form to get the best prices as we can! The MOQ can be as low as 100pcs.


  • Brand:

    KEHAN
  • item no.:

    KH-3-0046
  • Payment:

    T/T, Paypal, Western Union
  • product origin:

    XIAMEN, CN
  • Color:

    Black
  • shipping port:

    XIAMEN
  • Lead Time:

    2-3WEEKS
inquiry now
Product Details

In the electronic industry products, the DC power line is very common and internationally used; theDC power line is generally used for alternating current, and its voltage is not very large, and is mostly used for signal transmission, charging and direct power supply.

We can customize DC power cables with different wire gauges and wire lengths according to customer requirements.


Product Name 12V Male DC Power Extension Cable

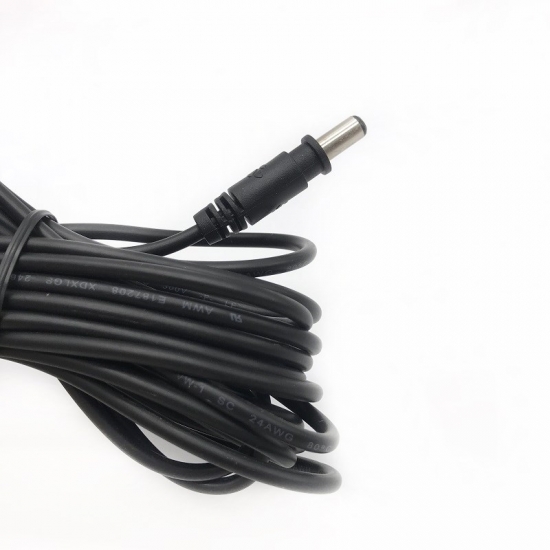

Cable UL 2464#24AWG 2wires (black, red ) VW- 80°C 300V
Length 5m or customized

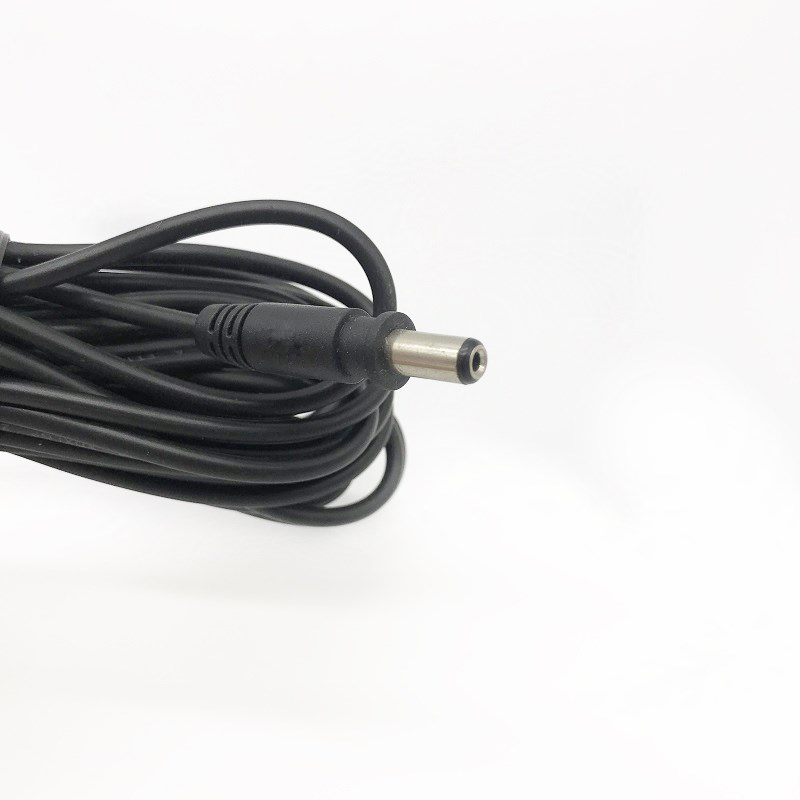

Connector  Male DC Plug 5.5mm 2.1mm
Certificated UL, RoHS
Can accept other cables customized? Yes

DC Power Supply CableDC Power Supply Cable aw-ca4t1The following basic parameters are available for you to choose from:

6x1.4
5x2.5
4.75x1.7
3.5x1.7
2.5x1
6x1.0
5x2.1
3.9x1.3
3.5x1.4
2.5x0.75

5x1.4
3.8x1.4
3.5x1.35

5x1.0
3.8x1.0
3.5x1.1

(The above specifications are understood as; the large number is the outer diameter; the small number is the inner diameter such as; 5.5X2.1, 5.5 is the outer diameter of the plug / 2.1 is the inner diameter of the plug)


Commonly you can see the dimensions in injection molding; 5.5X2.5 5.5X2.1 3.5X1.7 3.5X1.5 3.5X1.35 3.5X1.1


Copper wire, generally has pure copper wire, tinned wire, lacquered wire, etc. The material is different, the price will be different.
Commonly used copper wire; .09 copper wire 0.12 copper wire 0.15 copper wire 0.16 copper wire



The DC plug injection type can be equipped with round wire, flat wire and parallel wire, which is relatively firm and not easy to be scattered.
The assembly type DC connector generally uses round wires. It is generally used for DC AC current; it can withstand 300V voltage, and the current can withstand up to 16A. The shape is relatively small and beautiful.

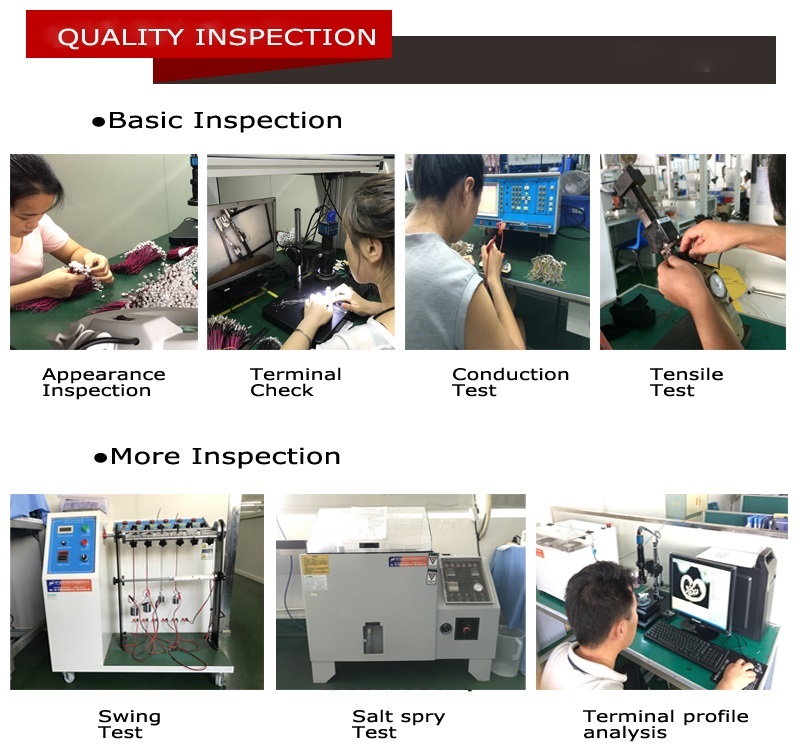

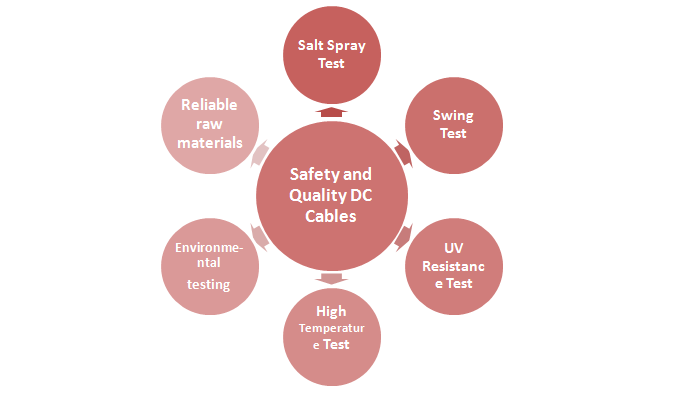

We are specialized in providing high quality DC lines, that every single cable will be passed basic electrical testing, and also they will pass the testing methods below:

quality test


SEND A MESSAGE

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

New Products

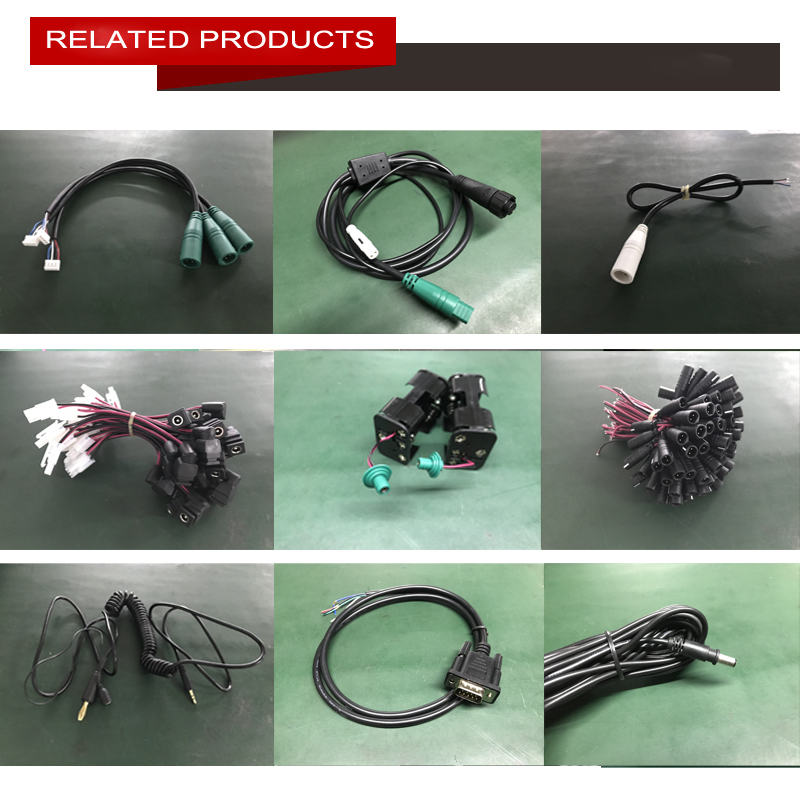

Related Product
