Wire Harness Assembly

12 Pin USB Cable with JST SHR 1.0mm Pitch Connector

Flexible 32AWG jacket cable molded with mini USB 12 Pin connector, which is made for the medical test devices. Our products comply with RoHS UL and ISO9001 quality standard.

  • Brand:

    KEHAN
  • item no.:

    KH-4-004
  • Payment:

    T/T, Paypal, Western Union
  • price range:

    1000 - 2000/$1.89
  • product origin:

    XIAMEN, CN
  • Color:

    White
  • shipping port:

    XIAMEN
  • Lead Time:

    4-6 Weeks
inquiry now
Product Details

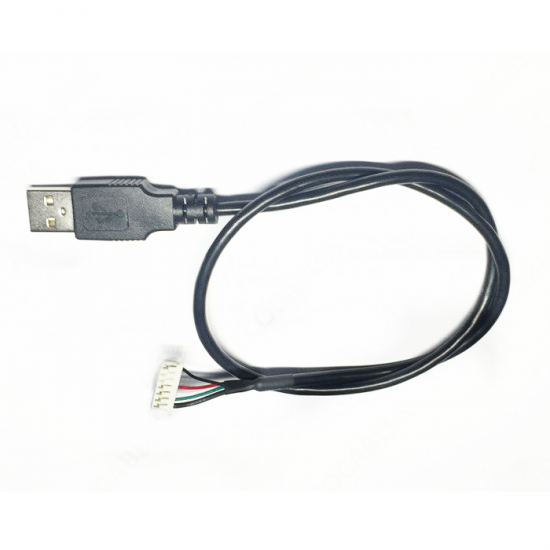

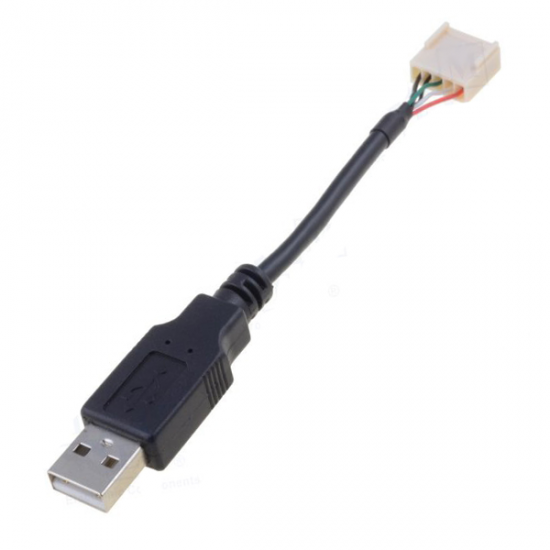

Product Name USB Cable Assembly Male
Cable  UL2725 #28AWG *4C
Color White jacket (Yellow, Red, Blue, Green)
Length 940mm
Connector 1 JST SHR 1.0PH 4P
Connector 2 Samsung USB 12P CONN
Weight 8.5 g
Other  PVC, White 45P
Can accept other OEM cables? Yes


USB Cable Assembly Drawing

Low Voltage USB Cable Assembly


More Information


1. Package: 20pcs a bundle, bundles into cartons

2. Package Size: 55×38×27(cm)

3. Shipment: we will check with our shipping agent for the most competitive shipping way for you, 3-5 working days the fastest



SEND A MESSAGE

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

New Products

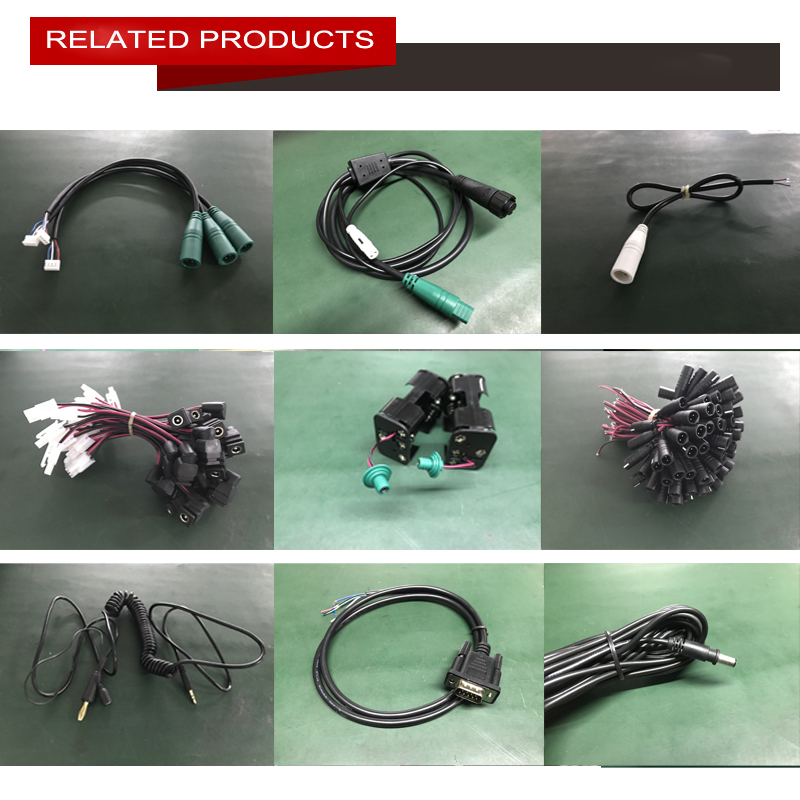

Related Product
